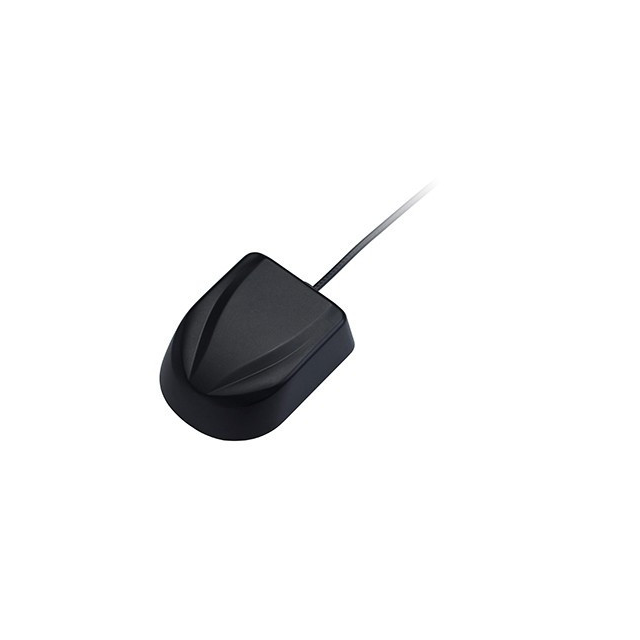

AA.108.301F21

Description：RF ANT 1.575GHZ MOD GT5 FML ADH
Series：Titan
Mfr：Taoglas Limited
Package：Bag

SKU:95045796b6f2 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.575GHZ MOD GT5 FML ADH
Series：Titan
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：1.57GHz ~ 1.58GHz
Antenna Type：Module
Number of Bands：1
VSWR：1.92
Return Loss：-
Gain：2dBic
Features：Cable - 3m, LNA
Termination：GT5 Female
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.598" (15.20mm)
Applications：GPS
Power - Max：-

Download product information

AA.108.301F21

Overview

The AA.108.301F21 is a GPS module RF antenna from the Titan series by Taoglas Limited, designed for navigation applications. It operates at a center frequency of 1.575GHz with a bandwidth covering 1.575GHz to 1.609GHz. The unit features an SMA female connector and utilizes adhesive mounting. It includes a 3-meter cable and an integrated Low Noise Amplifier (LNA). The antenna achieves a gain of 4dBic and meets IP67 ingress protection standards.

Feature Summary

Automotive-grade IP67 environmental sealing
Integrated LNA for signal amplification
Titan series automotive IMDS database listing

Applications

GPS navigation systems
GALILEO positioning modules
Automotive telematics units

Procurement Notes

Verify the specific GT5 connector variant against system requirements. Confirm IP67 rating compliance for harsh environments. Check for updated datasheets regarding the Titan series specifications. Ensure LNA power supply compatibility with the 3-meter cable length.

Selection Notes

Select this model for high-reliability navigation needs requiring automotive certification. The adhesive mount suits permanent installations. Consider the SMA female interface for direct cabling. Verify frequency coverage matches target GNSS constellations.

Part Context

Part of the Titan series, emphasizing automotive durability and global standard compliance. Designed for first-tier automotive suppliers requiring rigorous quality and material documentation.
