AA.162.301111

Overview

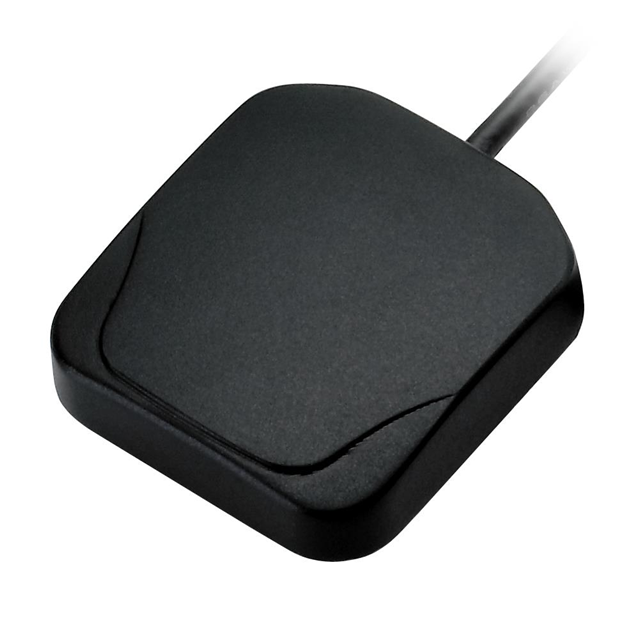

The Taoglas AA.162.301111 is a GPS/GLONASS module antenna operating within the 1.575GHz to 1.61GHz frequency range. It features a patch antenna type with magnetic mounting and an SMA male connector. The unit includes a 3-meter cable and an integrated Low Noise Amplifier (LNA). Key specifications include a gain of 28dB, a VSWR of 1.5, and a maximum height of 10mm. It supports GLONASS and GPS applications.

Feature Summary

• Magnetic mounting for flexible installation
• Integrated Low Noise Amplifier (LNA)
• Patch antenna design
• SMA male connector interface

Applications

• GPS navigation systems
• GLONASS positioning devices
• Mobile tracking units
• Telematics equipment

Procurement Notes

Verify the specific suffix configuration against the official Taoglas datasheet to ensure compatibility with required cable lengths and connector types. Confirm RoHS compliance status and check for any Product Change Notifications (PCN) related to manufacturing updates before finalizing procurement orders.

Selection Notes

Select this model when magnetic attachment is preferred over adhesive or threaded options. Ensure the application environment supports the specified frequency range and that the 3-meter cable length meets system layout requirements. Verify power supply compatibility for the integrated LNA if active operation is required.

Part Context

This component belongs to the Ulysses product line by Taoglas Limited. It is designed as a compact solution for GNSS applications requiring reliable signal reception in mobile or portable devices. The magnetic mount distinguishes it from fixed-mount alternatives in the same portfolio.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Check manufacturer documentation for potential obsolescence notices or recommended upgrades.
