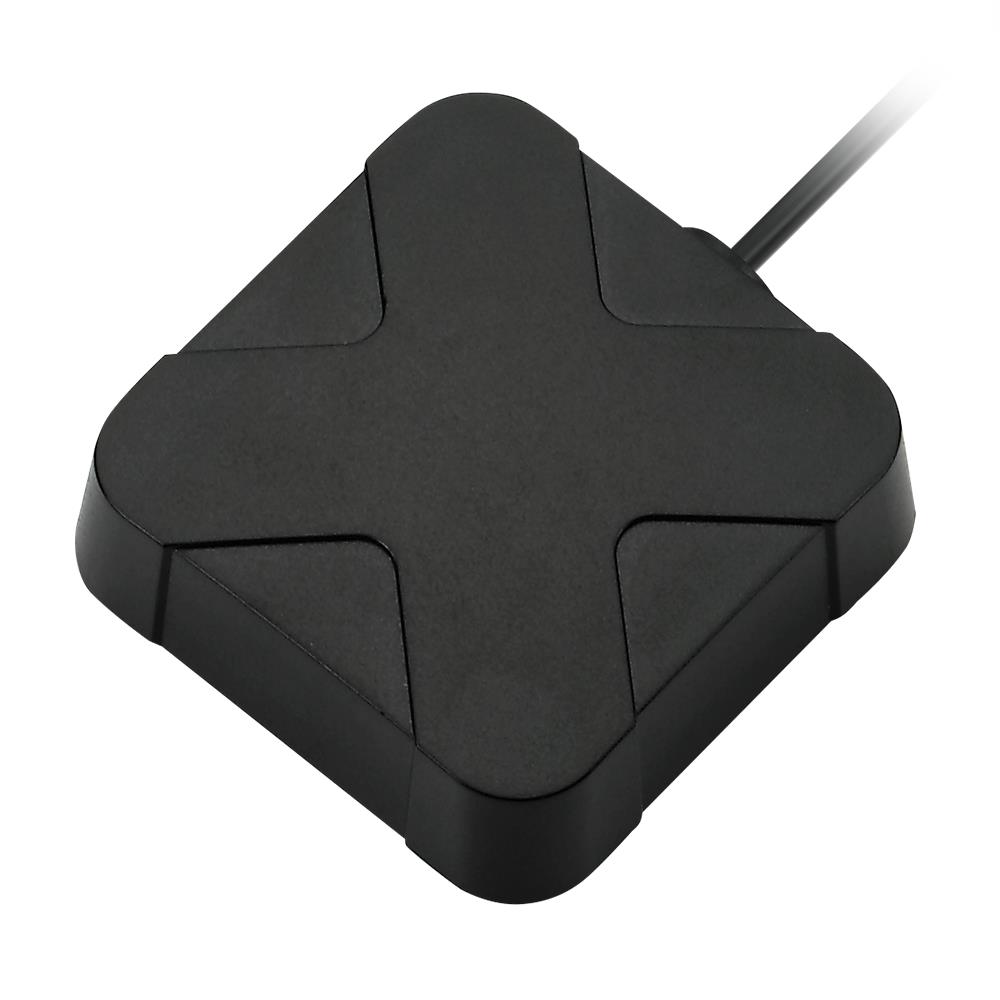

AA.175.B.301111

$48.91

Description：MAGMAX2 GPS L1/L2 MAG MOUNT ANTE
Series：Magma X
Mfr：Taoglas Limited
Package：Bag

SKU:1a68c9be6af9 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MAGMAX2 GPS L1/L2 MAG MOUNT ANTE
Series：Magma X
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.227GHz, 1.562GHz, 1.575GHz, 1.603GHz
Frequency Range：1.217GHz ~ 1.238GHz, 1.559GHz ~ 1.586GHz, 1.596GHz ~ 1.61GHz
Antenna Type：Module
Number of Bands：4
VSWR：2, 3, 4
Return Loss：-
Gain：1.27dBi, 0.04dBi, 0.04dBi, 0.06dBi
Features：Cable - 3m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.673" (17.10mm)
Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Power - Max：-

Download product information

AA.175.B.301111

Overview

The Taoglas AA.175.B.301111 is an external, IP67-rated, magnetic mount GNSS antenna supporting GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS. It features an active stacked patch design with SMA male connector. The frequency range spans 1.217 GHz to 1.61 GHz. Key electrical parameters include a gain of 0.06 dBi, VSWR of 4, and impedance of 50 Ohms.

Feature Summary

IP67 rated weatherproof construction for outdoor durability
Active stacked patch technology for high-performance multiband reception
Magnetic mounting base for rapid installation

Applications

Maritime navigation systems
Fleet tracking and telematics
Surveying and geospatial data collection

Procurement Notes

Verify the specific suffix B in the part number to confirm the active LNA configuration and SMA connector type. Ensure compatibility with existing cabling and mounting hardware. Confirm current manufacturing status as the legacy AA.175 model has been discontinued.

Selection Notes

Select this model when IP67 environmental protection and magnetic mounting are required. The active design supports multiple global satellite constellations including L1 and L2 bands. Verify that the SMA male interface matches the system input requirements.

Part Context

This component belongs to the Magma X2 series by Taoglas Limited. It serves as the successor to the legacy AA.175 model, which was discontinued due to outdated technology. The AA.175.B variant represents the updated portfolio offering with enhanced performance characteristics.

Replacement Considerations

The legacy AA.175.301111 is obsolete. The manufacturer recommends the AA.175.B.301111 as the direct substitute. Verify mechanical fit and electrical specifications before replacing older units.
