AA.178.301111

Overview

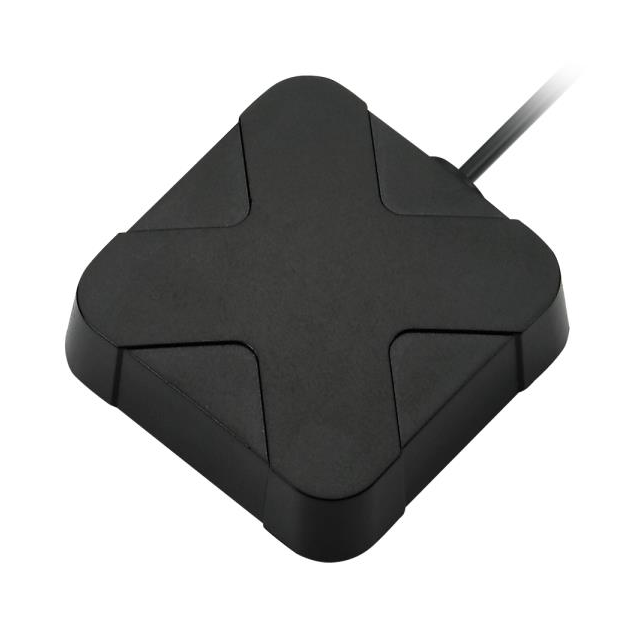

The AA.178.301111 is an active GNSS module antenna manufactured by Taoglas Limited, designed for satellite navigation applications. It supports multiple global protocols including GPS, GLONASS, Galileo, and BeiDou. The operational frequency range spans from 1.17645 GHz to 1.57542 GHz, covering L1 and L5 bands. The component utilizes a magnetic mount installation type and features an SMA male connector interface. It is classified as an outdoor antenna with RoHS3 compliance.

Feature Summary

• Active GNSS module design supporting multi-constellation navigation signals
• Magnetic mount installation for external placement
• SMA male connector interface for cable integration

Applications

• GPS navigation systems
• GLONASS positioning devices
• Galileo receiver modules
• BeiDou tracking equipment

Procurement Notes

Verify the current lifecycle status of this part number before procurement. Official documentation indicates that the AA.178 series is being discontinued due to legacy technology features. Confirm availability through authorized distributors and check for potential End-of-Life (EOL) notifications or product change notices prior to finalizing orders.

Selection Notes

Select this component for applications requiring broad GNSS protocol support across L1 and L5 bands. Ensure the system design accommodates an active antenna configuration and provides adequate power supply for the internal amplifier. Verify that the SMA male interface matches the receiving equipment's connector type.

Part Context

This model belongs to the Magma X product line from Taoglas Limited. It is positioned as an external solution for robust satellite navigation reception. The specific variant AA.178.301111 represents the standard SMA male connector version within this family.

Replacement Considerations

Official sources indicate the AA.178 series is discontinued in favor of the newer AA.178.B product. Evaluate the AA.178.B as a direct successor within the portfolio. Verify mechanical compatibility and electrical specifications when transitioning to the updated model.

FAQ

Does the AA.178.301111 support both L1 and L5 bands?

Yes, the antenna operates across the frequency range of 1.17645 GHz to 1.57542 GHz, which covers both L1 and L5 bands.

What is the mounting method for this antenna?

The AA.178.301111 utilizes a magnetic mount installation type, allowing for external placement on metallic surfaces.
