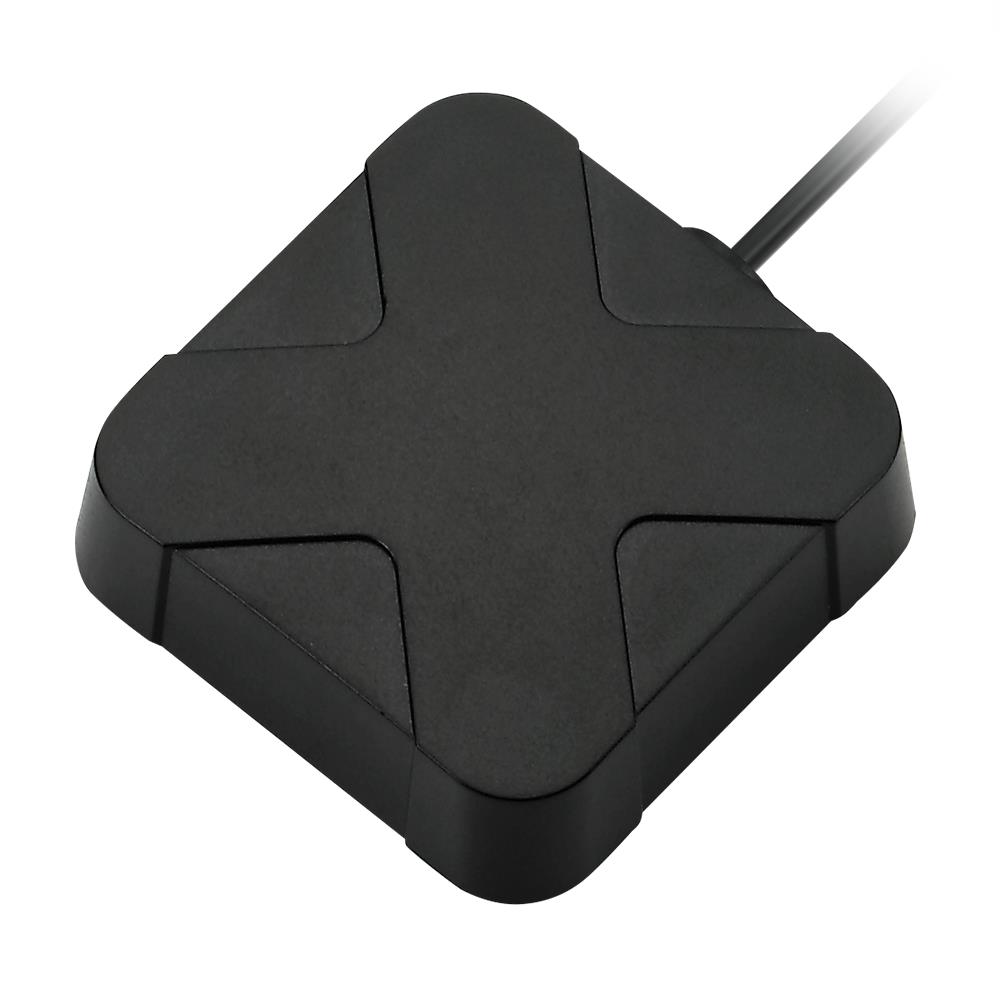

AA.178.B.301111

$47.31

Description：MAGMAX2 ACTIVE GPS L1/L5 MAG MOU
Series：Magma X
Mfr：Taoglas Limited
Package：Bag

SKU:2f6902f72005 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MAGMAX2 ACTIVE GPS L1/L5 MAG MOU
Series：Magma X
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：4
VSWR：3, 4
Return Loss：-
Gain：0.26dBi, 0.04dBi, 0.04dBi, -0.5dBi
Features：Cable - 3m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.673" (17.10mm)
Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Power - Max：-

Download product information

AA.178.B.301111

Overview

The Taoglas AA.178.B.301111 is an external, IP67-rated, magnetic mount GNSS antenna from the MagmaX2 series. It supports BeiDou, Galileo, GLONASS, GPS, IRNSS, QZSS, and SBAS systems. The center frequencies are 1.17645 GHz, 1.561 GHz, and 1.602 GHz. It features a 3000 mm RG-174 cable with an SMA male connector. The antenna provides 0.46 dBic gain and includes a low noise amplifier to preserve signal quality.

Feature Summary

IP67-rated environmental protection for outdoor durability
Magnetic mounting design for easy installation
Low noise amplifier integration to maintain signal integrity

Applications

Multiband GNSS positioning systems
Maritime navigation equipment
Agricultural machinery tracking
Fleet management telematics

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct cable length and connector configuration. Confirm that the required frequency bands align with the supported constellations listed in the datasheet. Check for any regional compliance certifications required for deployment.

Selection Notes

Select this model when high-performance multiband reception is required in harsh environments. The IP67 rating and magnetic mount make it suitable for mobile platforms where permanent installation is not feasible. Ensure the RG-174 cable length meets the system layout requirements.

Part Context

This component belongs to the Taoglas MagmaX2 series of high-performance multiband GNSS antennas. The series is characterized by external construction, robust weather sealing, and versatile mounting options designed for demanding operational scenarios across various industries.

Replacement Considerations

Consider the AA.175.B series variants within the same MagmaX2 family for similar performance characteristics. Verify compatibility regarding connector type and cable specifications before substitution.
