AA.200.151111

Overview

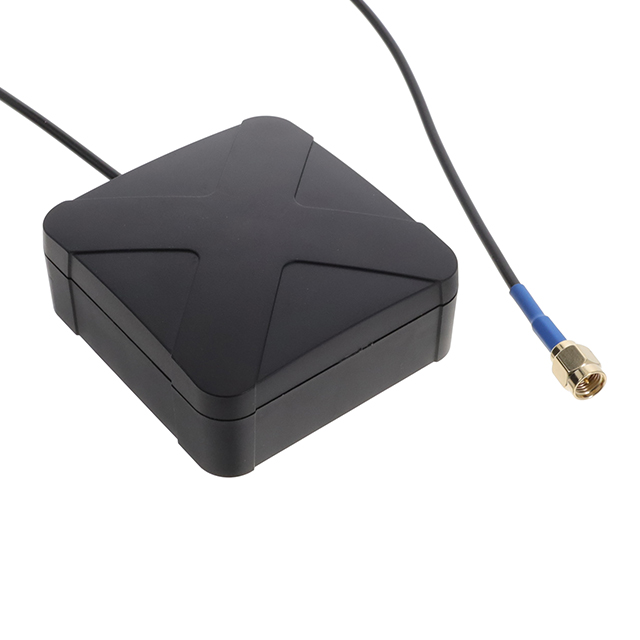

The AA.200.151111 is an active multiband GNSS magnetic mount antenna from the MagmaX2 series by Taoglas Limited. It supports GPS (L1/L2/L5), GLONASS (G1/G2), Galileo, and Beidou constellations. The unit features a square patch design with SMA male connectors and a magnetic base. Key electrical parameters include a gain of 2.4dBi, VSWR of 2, input impedance of 50 ohms, and right-hand circular polarization. It offers low axial ratio for accurate positioning and includes a robust IPXX rated enclosure.

Feature Summary

• Active multiband support for major global navigation satellite systems including GPS, GLONASS, Galileo, and Beidou
• Low axial ratio design ensures high-precision positioning accuracy
• Robust magnetic mounting system with IPXX rated enclosure for secure installation

Applications

• Vehicle tracking and telematics
• Maritime navigation equipment
• Aviation navigation systems
• Geospatial data collection devices

Procurement Notes

Verify the specific connector type and cable length requirements against the official datasheet before ordering. Confirm that the magnetic mount base is suitable for the intended surface material. Ensure the active LNA power supply matches the antenna's voltage specifications to prevent damage or signal loss during operation.

Selection Notes

Select this model when broad constellation support across GPS, GLONASS, Galileo, and Beidou is required. The magnetic mount facilitates rapid deployment on metal surfaces without drilling. The active design compensates for cable losses, making it suitable for longer run lengths compared to passive alternatives.

Part Context

This component belongs to the MagmaX2 series of active GNSS antennas. It is designed for mobile platforms requiring reliable multi-constellation reception. The square patch form factor allows for discreet integration into vehicle roofs or marine structures while maintaining optimal radiation patterns.

Replacement Considerations

No direct substitute part numbers are documented in the provided source material. If this model is unavailable, evaluate other active magnetic mount GNSS antennas from the manufacturer that support the same frequency bands and connector types.
