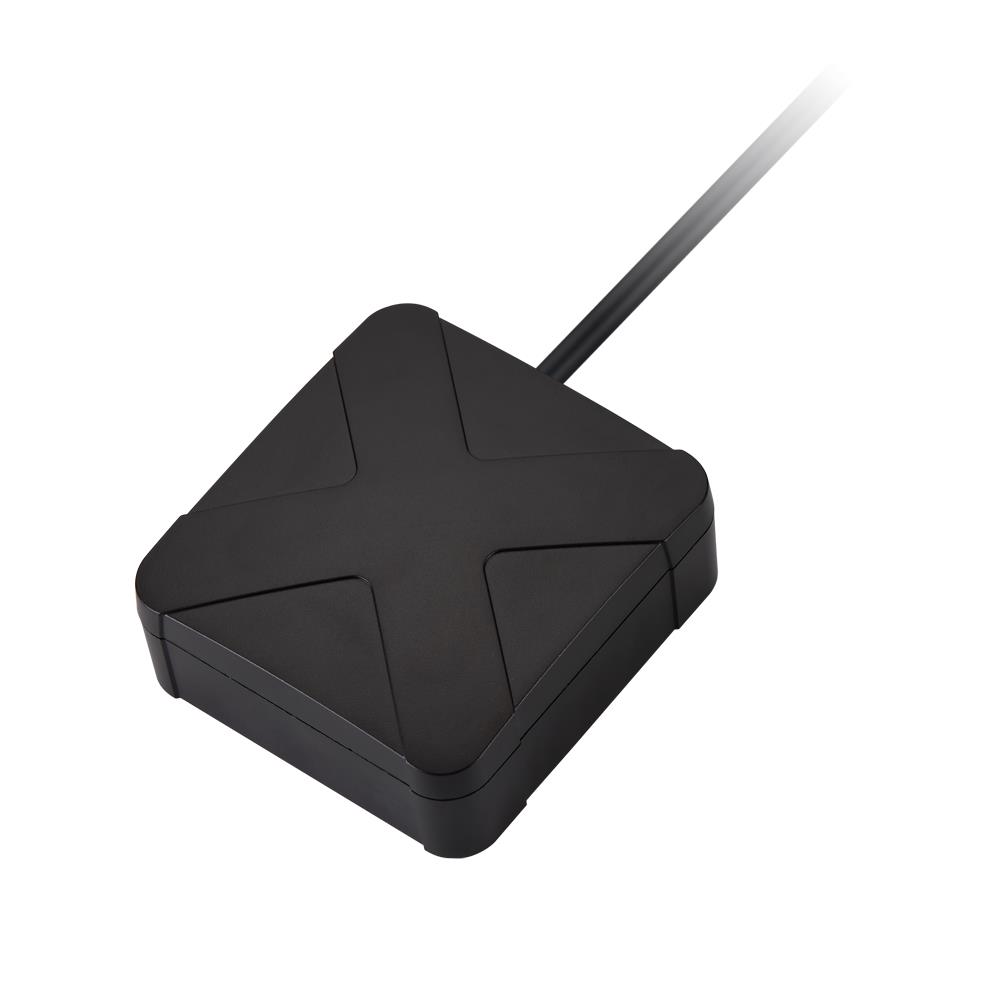

AA.215.201111

$97.58

Description：GNSS L1/L5/L-BAND EXTERNAL 2M RG
Series：MagmaX
Mfr：Taoglas Limited
Package：Bag

SKU:53437cd1438d Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：GNSS L1/L5/L-BAND EXTERNAL 2M RG
Series：MagmaX
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.176GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：5
VSWR：1
Return Loss：-
Gain：4.82dBi, 4.9dBi, 5.02dBi, 5.04dBi, 4.59dBi
Features：Cable - 2m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：1.043" (26.50mm)
Applications：BeiDou, Galileo, GLONASS, GNSS, GPS
Power - Max：-

Download product information

AA.215.201111

Overview

The AA.215.201111 is a GNSS external antenna module by Taoglas Limited, supporting GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, SBAS, and L-Band frequencies from 1.17645 GHz to 1.602 GHz. It features an SMA male connector, magnetic mounting, and IP67 ingress protection. The unit includes a 2-meter RG cable and integrates a Low Noise Amplifier (LNA). Mechanical dimensions are 63.2 mm in length with a maximum operating temperature of +85°C.

Feature Summary

Supports multi-constellation GNSS including GPS, GLONASS, Galileo, and BeiDou
Integrated Low Noise Amplifier for signal enhancement
Magnetic mount design for flexible installation
IP67 rated enclosure for environmental protection

Applications

Vehicle tracking systems
Maritime navigation equipment
Fleet management solutions
GNSS data loggers

Procurement Notes

Verify the specific frequency bands required for your target region, as this model covers multiple global constellations. Confirm that the SMA male interface matches your receiver input. Ensure the 2-meter cable length suits your deployment layout. Check the IP67 rating against your environmental exposure requirements. Validate the magnetic mount strength for the intended surface material.

Selection Notes

Choose this model when broad constellation support across L1 and L5 bands is necessary. The integrated LNA improves sensitivity for weak signal environments. The magnetic base allows for temporary or semi-permanent placement without drilling. Consider the 2-meter cable length for routing flexibility between the antenna and the host device.

Part Context

This component belongs to Taoglas' GNSS antenna portfolio, designed for robust positioning applications. It complements internal PCB antennas by offering higher gain and external connectivity. The module serves as a critical link for accurate location data in mobile and stationary platforms requiring reliable satellite reception.

Replacement Considerations

Direct substitutes may include other Taoglas models with similar SMA connectors and magnetic mounts. Verify compatibility if replacing due to supply constraints. Ensure the replacement supports the same GNSS constellations and frequency ranges. Check mechanical dimensions to fit existing enclosures.
