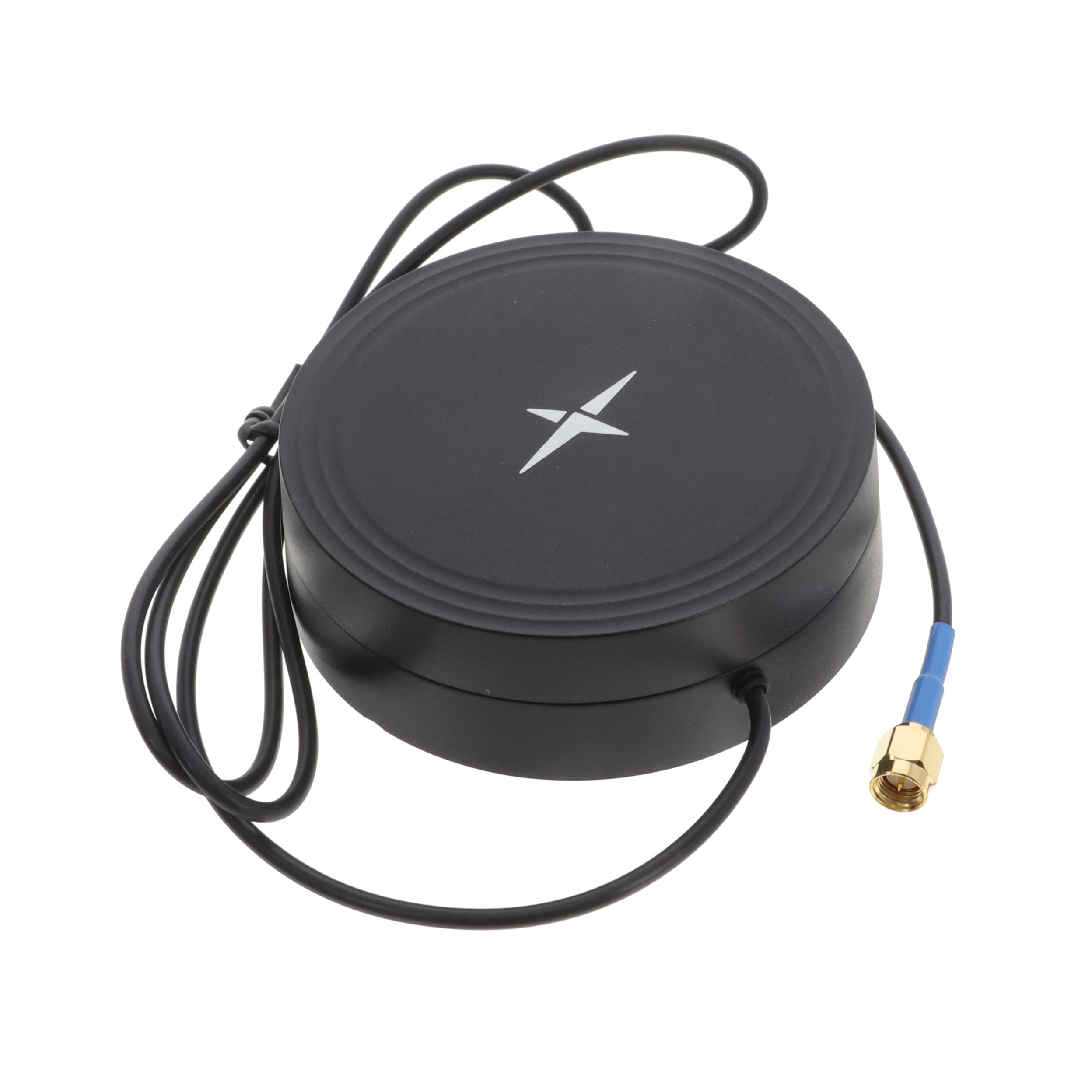

AA.250.101111

$220.99

Description：ALL-BAND GNSS MAGNETIC MOUNT ANT
Series：-
Mfr：Taoglas Limited
Package：Bulk

SKU:7ee5800635a2 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ALL-BAND GNSS MAGNETIC MOUNT ANT
Series：-
Mfr：Taoglas Limited
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：9
VSWR：-
Return Loss：-
Gain：-
Features：Cable - 1m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：1.024" (26.00mm)
Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Power - Max：-

Download product information

AA.250.101111

Overview

The AA.250.101111 is an active GNSS magnetic mount antenna by Taoglas Limited, designed for L-band frequencies ranging from 1.17645 GHz to 1.602 GHz. It supports multiple constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS. The unit features a male SMA connector and provides a gain of 23.5 dBi. It is RoHS compliant and classified under ECCN EAR99.

Feature Summary

Active multi-constellation GNSS reception capability
Magnetic mounting form factor for rapid deployment
Integrated Low Noise Amplifier (LNA) for signal integrity

Applications

Positioning systems requiring global satellite coverage
Correction service reception via L-Band
Mobile tracking and navigation platforms

Procurement Notes

Verify the specific connector gender and cable length requirements against system interface specifications before ordering. Confirm that the active LNA power supply voltage matches the host device output. Ensure the magnetic base strength is sufficient for the intended installation surface to maintain signal stability during operation.

Selection Notes

Select this model when broad constellation support across L-band frequencies is required. The magnetic mount design facilitates temporary or semi-permanent installations without drilling. Consider the 23.5 dBi gain performance for applications demanding reliable signal acquisition in challenging environments.

Part Context

This component belongs to the Comet series of active GNSS antennas from Taoglas Limited. The series focuses on providing comprehensive satellite coverage through magnetic mount designs suitable for vehicle and portable applications. It represents a solution for integrating multi-system positioning capabilities into compact hardware.

Replacement Considerations

The AA.200.151111 MagmaX2 serves as a related active magnetic mount alternative within the portfolio. Verify frequency band compatibility and connector types when evaluating substitutes. Cross-reference technical specifications to ensure equivalent gain and constellation support levels.
