AA-9.84375MAHE-T

Crystals Overview

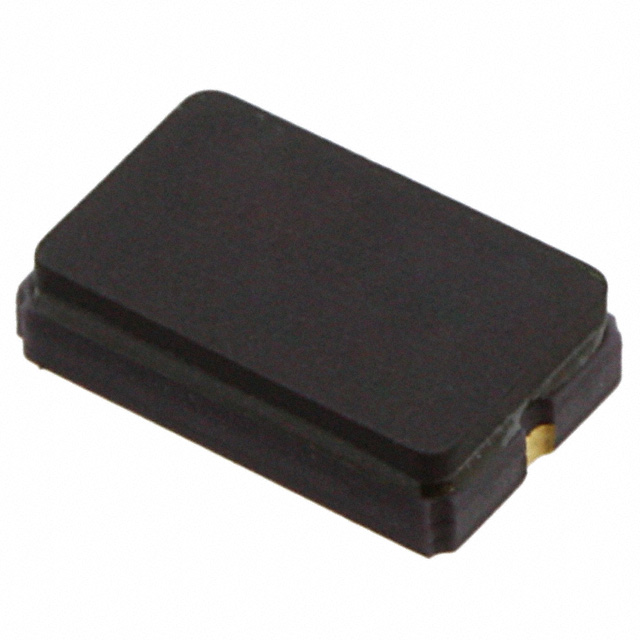

The AA-9.84375MAHE-T is a surface-mount crystal oscillator manufactured by TXC Corporation, operating at a nominal frequency of 9.84375 MHz. It features a fundamental resonance mode with a load capacitance of 12 pF and an equivalent series resistance of 150 Ohms. The component provides a frequency tolerance and stability of ±30 ppm. Designed for automotive applications, it holds AEC-Q200 certification and utilizes a compact 2-pin SMD package without leads.

Crystals Feature Summary

• AEC-Q200 certified for automotive reliability standards
• Fundamental resonance operation mode
• Compact two-terminal surface mount packaging

Crystals Applications

• Automotive electronic systems requiring certified timing components
• On-board communication modules
• Vehicle control unit clock sources

Crystals Procurement Notes

Verify the specific suffix HE against official TXC documentation to confirm package dimensions and termination style. Ensure the application environment meets the operational requirements defined in the manufacturer's datasheet. Cross-reference the part number with authorized distributors to confirm current availability status and authenticity.

Crystals Selection Notes

Select this component when an automotive-grade crystal with AEC-Q200 certification is required. The 12 pF load capacitance must match the circuit design specifications. Consider the ±30 ppm stability limit for system timing accuracy requirements before implementation.

Crystals Part Context

This part belongs to the AA Series from TXC Corporation, which specializes in miniature crystals for automotive electronics. The series is characterized by high frequency stability across wide temperature ranges and compliance with strict automotive quality standards.

Crystals Replacement Considerations

Consult the official TXC replacement guide for direct substitutes. Verify that any alternative component maintains AEC-Q200 certification and identical electrical parameters including load capacitance and frequency tolerance.
