AANE-WH-0149-RIP

Description：RF ANT WI-FI6E/7 WATERPROOF WHI
Series：AANE-WH
Mfr：Abracon LLC
Package：Bulk

SKU:281dfd920f18 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT WI-FI6E/7 WATERPROOF WHI
Series：AANE-WH
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Whip, Straight
Number of Bands：3
VSWR：2, 2.5, 3.5
Return Loss：5dBi, 6dBi, 10dBi
Gain：2.2dBi, 3.2dBi, 2.7dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：1.969" (50.00mm)
Applications：802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™
Power - Max：5 W

Download product information

AANE-WH-0149-RIP

Overview

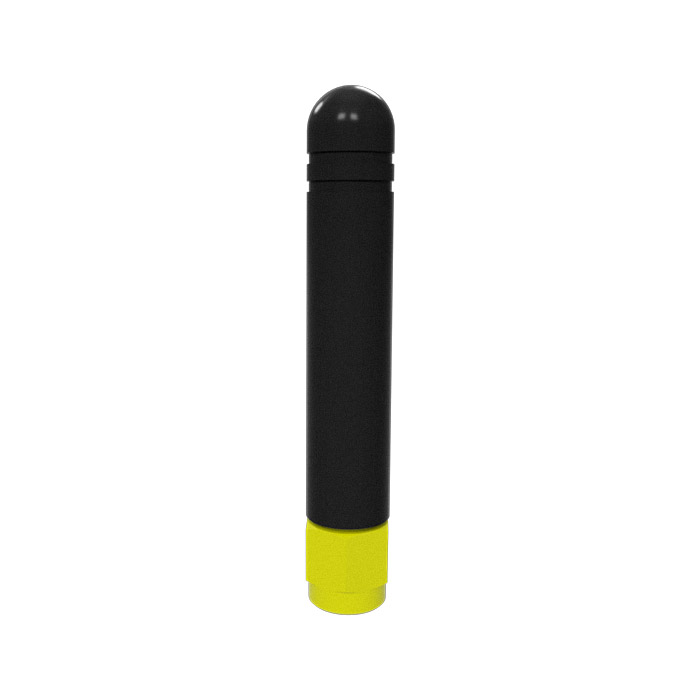

The AANE-WH-0149-RIP is a weatherproof RF antenna designed for wireless communication protocols including 802.11ac, ax, be, b/g/n, Bluetooth, WLAN, and Zigbee. It features an RP-SMA male connector with straight positioning capabilities. The unit achieves high efficiency up to 62% and delivers a peak gain ranging from 2.2 dBi to 3.2 dBi. It is constructed with an IP65 rated housing to ensure durability in outdoor or harsh environments.

Feature Summary

Weatherproof construction with IP65 rating for reliable outdoor operation
High efficiency performance reaching up to 62%
RP-SMA male connector design facilitating straight mounting configurations

Applications

Outdoor Wireless Local Area Network (WLAN) deployments
Bluetooth Low Energy (BLE) sensor networks
Zigbee mesh network infrastructure

Procurement Notes

Verify the specific datasheet version to confirm exact frequency bands supported by the manufacturer. Ensure the RP-SMA male connector interface matches the receiving equipment's port type. Confirm IP65 compliance requirements align with the intended installation environment specifications before finalizing procurement.

Selection Notes

Select this component when straight-mount orientation is required for multi-protocol wireless applications. The IP65 rating makes it suitable for exposed installations where environmental protection is necessary. Consider the 2.2–3.2 dBi gain range for standard coverage needs rather than long-range directional applications.

Part Context

This model belongs to Abracon’s RF antenna portfolio, specifically targeting multiprotocol wireless connectivity solutions. It integrates support for IEEE 802.11 standards alongside Bluetooth and Zigbee, providing a versatile hardware foundation for IoT and networking devices requiring robust signal transmission in varied conditions.
