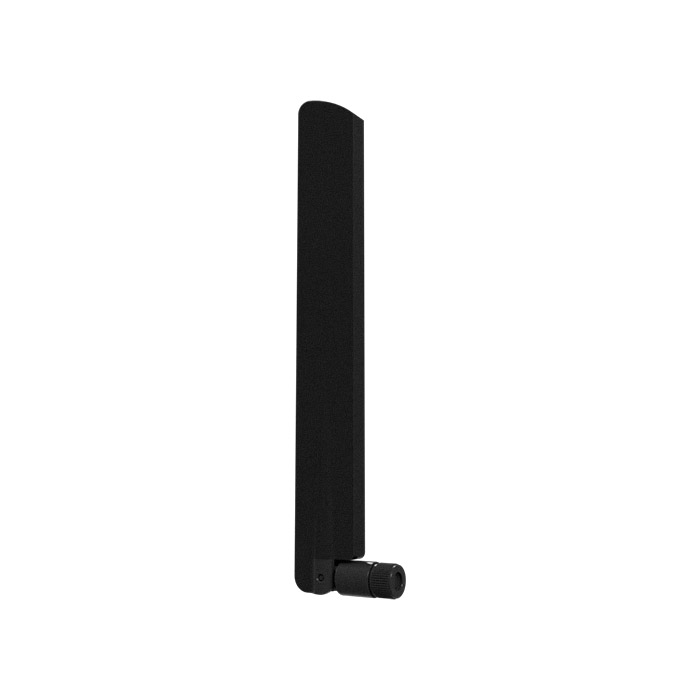

AANE-WH-0150-SIP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT WI-FI6E/7 WATERPROOF WHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANE-WH-0150-SIP
- Description：RF ANT WI-FI6E/7 WATERPROOF WHIP
- Series：AANE-WH
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Whip, Tilt
- Number of Bands：3
- VSWR：2
- Return Loss：10dB
- Gain：2.4dBi, 4.4dBi, 4.1dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：8.740" (222.00mm)
- Applications：802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™
- Power - Max：5 W
Antennas RF datasheet and documents for AANE-WH-0150-SIP
Antennas RF Overview
The AANE-WH-0150-SIP is a high-performance weather-proof whip antenna manufactured by Abracon LLC. It supports Wi-Fi frequencies across 2.4 GHz, 5 GHz, and 6 GHz bands, specifically operating within the 2400-2500 MHz and 5150-5850 MHz ranges. The component is designed for robust outdoor or harsh environment connectivity.
Antennas RF Feature Summary
- Weather-proof construction for durability in outdoor conditions
- Whip antenna form factor for omnidirectional coverage
- Multi-band support covering 2.4, 5, and 6 GHz Wi-Fi standards
Antennas RF Applications
- Outdoor Wi-Fi access points
- Industrial IoT gateways requiring weather resistance
- Public wireless network infrastructure
Antennas RF Procurement Notes
Verify the specific frequency band configuration and connector type required for your application against the official datasheet. Confirm environmental sealing ratings if deployment involves direct exposure to moisture or extreme temperatures. Consult local Abracon representatives for detailed technical specifications and availability.
Antennas RF Selection Notes
Select this model when multi-band Wi-Fi connectivity (2.4/5/6 GHz) is required in environments necessitating weather-resistant hardware. Ensure the mounting interface and connector compatibility match the host device design. Validate that the whip form factor aligns with spatial constraints and radiation pattern requirements.
Antennas RF Part Context
This part belongs to Abracon's high-performance antenna portfolio, focusing on reliable wireless communication solutions. The AANE-WH series typically targets applications demanding durable, external connectivity options for networking equipment operating in challenging physical environments.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting hardware and RF interfaces before considering alternative models from the same manufacturer.
