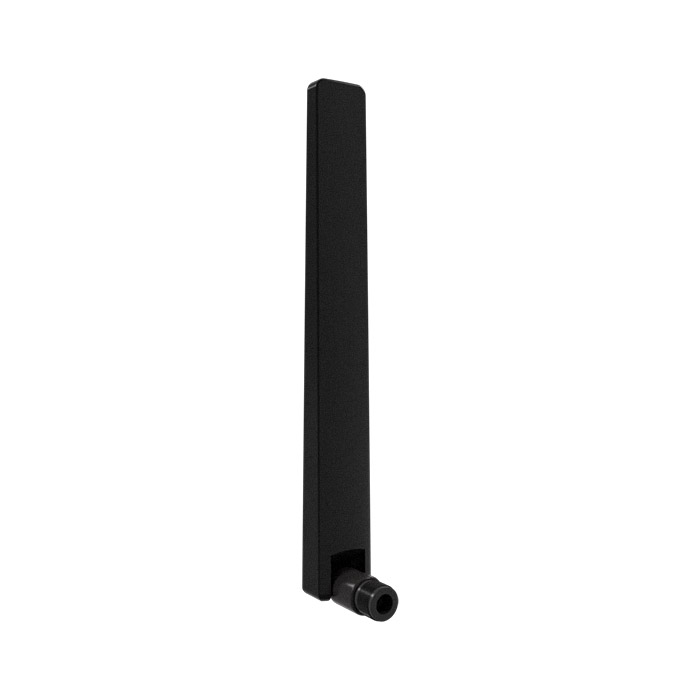

AANE-WH-0151-SIP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT WI-FI6E/7 WATERPROOF WHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANE-WH-0151-SIP
- Description：RF ANT WI-FI6E/7 WATERPROOF WHIP
- Series：AANE-WH
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Whip, Tilt
- Number of Bands：3
- VSWR：2
- Return Loss：10dB
- Gain：2.6dBi, 4.7dBi, 4.3dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：7.728" (196.30mm)
- Applications：802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™
- Power - Max：5 W
Antennas RF datasheet and documents for AANE-WH-0151-SIP
Antennas RF Overview
The AANE-WH-0151-SIP is a high-performance, weather-proof whip antenna designed for Wi-Fi applications. It supports multiple frequency bands: 2400-2500 MHz, 5150-5850 MHz, and 5925-7125 MHz. The component utilizes connector mount installation and is packaged in bulk quantities.
Antennas RF Feature Summary
- Weather-proof construction for outdoor durability
- Multi-band support covering 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi standards
Antennas RF Applications
- Outdoor Wi-Fi access points
- Industrial wireless communication systems
- Public safety networking infrastructure
Antennas RF Procurement Notes
Verify the specific datasheet version with Abracon LLC to confirm current electrical specifications and mechanical dimensions. Ensure compatibility with the intended connector interface before integration into the final assembly design.
Antennas RF Selection Notes
Select this model when multi-band Wi-Fi coverage including 6 GHz is required in exposed environments. Confirm that the connector mount style aligns with the system's physical mounting constraints and environmental sealing requirements.
Antennas RF Part Context
This part belongs to Abracon's high-performance weather-proof whip antenna series. It complements other indoor and embedded solutions by providing robust connectivity for harsh or external deployment scenarios requiring wide frequency range support.
Antennas RF Replacement Considerations
Consult local Abracon representatives for updated models or direct substitutes. Verify that any replacement maintains identical frequency ranges and mounting configurations.
