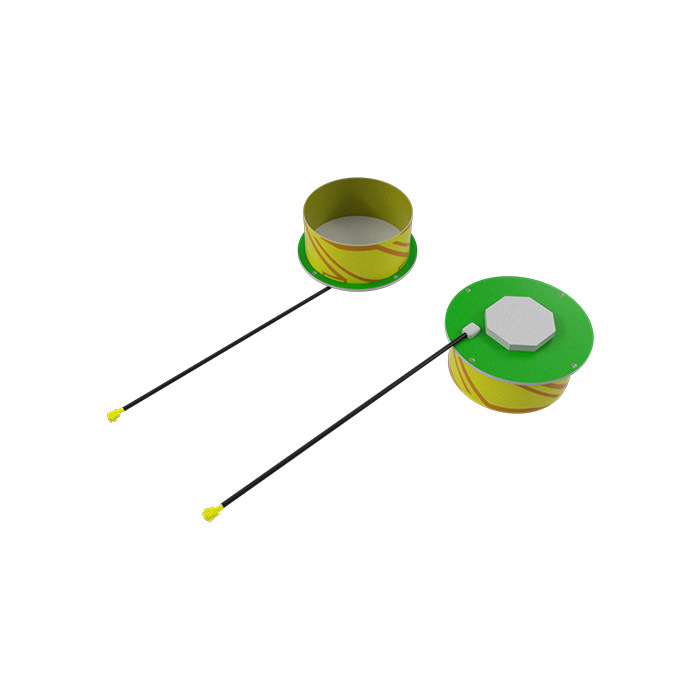

AANI-AH-0126-1 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANTENNA FULL BAND + L BAND HE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANI-AH-0126-1
- Description：RF ANTENNA FULL BAND + L BAND HE
- Series：AANI-AH
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.603GHz
- Frequency Range：1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz
- Antenna Type：Helical
- Number of Bands：8
- VSWR：2
- Return Loss：-
- Gain：2.8dBic, 3.3dBic, 2.7dBic
- Features：Cable - 100mm, LNA, Filter
- Termination：I-PEX MHF1 (U.FL)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Base Mount
- Height (Max)：0.864" (21.95mm)
- Applications：Beidou, Galileo, GNSS, GPS, GLONASS, GNSS, IRNSS, NAVIC, QZSS, SBAS
- Power - Max：-
Antennas RF datasheet and documents for AANI-AH-0126-1
Antennas RF Overview
The AANI-AH-0126-1 is a full-band embedded GNSS helix antenna manufactured by Abracon LLC. It supports the complete L-band frequency range, ensuring comprehensive satellite signal reception for global navigation systems. The component features a low-profile design suitable for space-constrained applications. It complies with RoHS 3 directives and does not have a defined Moisture Sensitivity Level (MSL).
Antennas RF Feature Summary
- Full-band L-band coverage for universal GNSS compatibility
- Embedded helix architecture with minimal physical profile
- RoHS 3 compliant construction
Antennas RF Applications
- Global Navigation Satellite System receivers
- Automotive telematics units
- Portable GPS tracking devices
Antennas RF Procurement Notes
Verify the specific datasheet version before integration to ensure mechanical dimensions match the host PCB layout. Confirm that the RoHS 3 status aligns with regional environmental regulations. Check for any recent updates to the mounting specifications or impedance matching requirements provided in the official documentation.
Antennas RF Selection Notes
Select this component when a low-profile solution is required for full-band GNSS reception. The embedded helix design offers a compact alternative to traditional patch antennas. Ensure the application environment allows for proper ground plane clearance as specified in the technical guidelines.
Antennas RF Part Context
This part belongs to Abracon's AANI-AH series of RF antennas. The series focuses on providing reliable satellite communication solutions with varied form factors. The AANI-AH-0126-1 specifically addresses the need for high-performance reception in compact electronic devices requiring precise positioning data.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative manufacturers.
