AANI-AP-0035

Antennas RF Overview

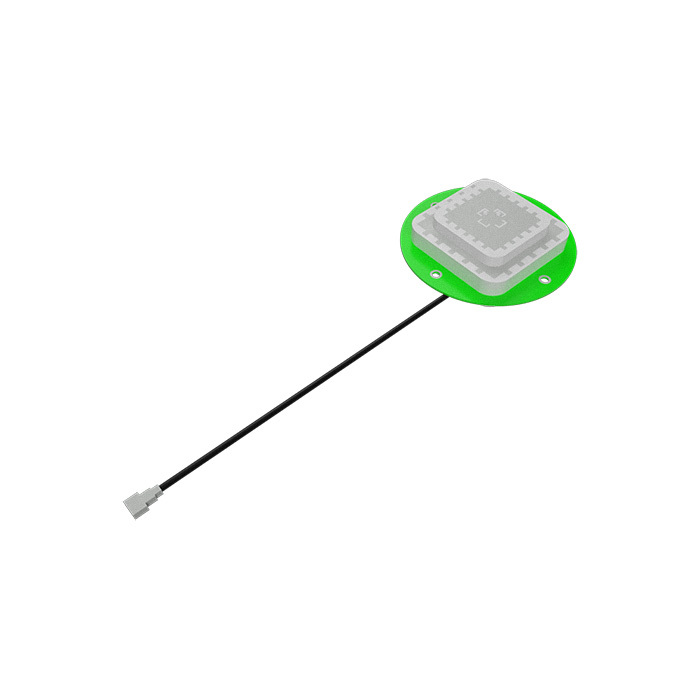

The AANI-AP-0035 is a multi-band active GNSS patch antenna designed for high-precision positioning. It supports GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1/B2/B3, QZSS L1/L2, and SBAS L1 frequencies. The operating frequency range spans 1176.45 to 1609.31 MHz. Key electrical specifications include a gain of 4.5 to 5 dBic, a noise figure of 2 dB, and an operating voltage of 3.3 to 12 V.

Antennas RF Feature Summary

• Multiband active GNSS reception supporting multiple global navigation satellite systems
• Integrated pre-filtering for enhanced anti-jamming performance
• High low-noise amplifier (LNA) gain for improved signal sensitivity

Antennas RF Applications

• Precision agriculture equipment requiring dual-frequency positioning
• Surveying and mapping instruments
• Autonomous vehicle navigation systems
• Maritime and aviation tracking devices

Antennas RF Procurement Notes

Verify the specific connector type and pinout configuration before integration, as datasheets may indicate MMCX variants. Confirm supply chain authenticity through authorized Abracon distributors. Check current production status and lead times directly with the manufacturer or certified agents to ensure availability for long-term deployment.

Antennas RF Selection Notes

Select this component when multi-constellation support and dual-frequency capability are required for high-accuracy applications. The integrated LNA and pre-filtering make it suitable for environments with potential interference. Ensure the host system provides the specified 3.3 to 12 V DC power supply and matches the physical mounting requirements for the patch form factor.

Antennas RF Part Context

This model belongs to Abracon's active GNSS antenna portfolio, which focuses on compact, high-performance solutions for modern navigation needs. The AANI-AP series distinguishes itself by combining multiband reception capabilities with robust anti-jamming features in a small form factor, catering to industries demanding reliable positioning data.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon technical support for direct equivalents or updated series replacements if this specific model becomes obsolete.
