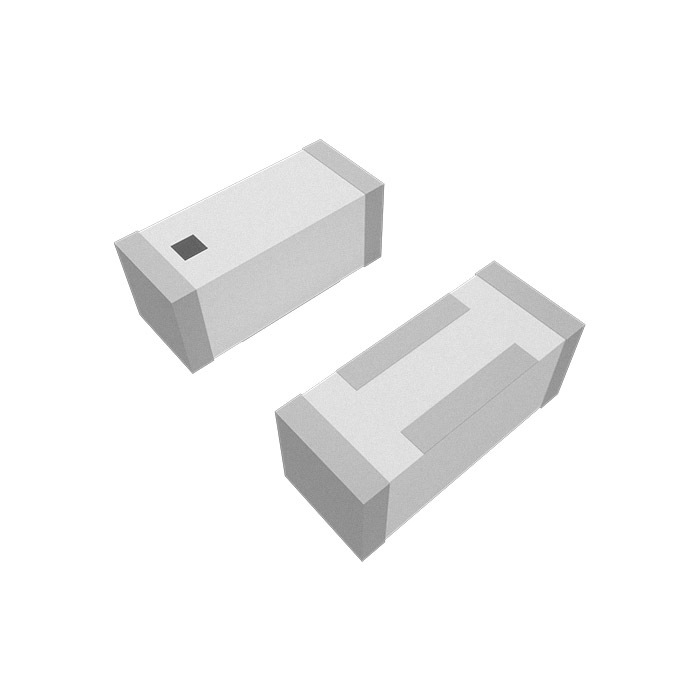

AANI-CH-0068-T

Antennas RF Overview

The AANI-CH-0068-T is a surface-mount chip antenna designed for Bluetooth and Wi-Fi applications operating at the 2.4 GHz sub-band. It features a compact footprint of 5.0 x 2.0 x 2.0 mm with solder termination. Key electrical specifications include a peak gain of 2.7 dBi, an average total efficiency of -1.3 dB (75%), and a return loss of less than -15.4 dB. The component supports a maximum power handling of 3 W.

Antennas RF Feature Summary

• Miniaturized physical dimensions suitable for space-constrained embedded designs
• Optimized RF performance with low return loss and high total efficiency
• Surface mount construction for automated assembly integration

Antennas RF Applications

• Bluetooth Low Energy (BLE) modules
• Wi-Fi enabled IoT devices
• Compact wireless communication peripherals

Antennas RF Procurement Notes

Verify that the specific suffix '-T' corresponds to the tape-and-reel packaging configuration required for your manufacturing line. Confirm that the 2.4 GHz frequency range aligns with your target protocol standards. Ensure compatibility with the recommended evaluation board, such as the AANI-CH-0068-EVB, during the initial design phase to validate impedance matching and radiation patterns before final production.

Antennas RF Selection Notes

Select this component when system size constraints necessitate a miniaturized internal antenna solution. The 2.7 dBi gain and 75% efficiency provide adequate performance for short-range data transmission in dense environments. Consider the 3 W power rating if the application involves higher transmit power requirements compared to standard passive sensors.

Antennas RF Part Context

This model belongs to Abracon's AANI-CH series of internal chip antennas. The series focuses on providing reliable RF connectivity for consumer electronics and industrial IoT devices. It complements Abracon's broader portfolio of frequency control and timing solutions by addressing the growing demand for integrated wireless communication capabilities in compact form factors.

Antennas RF Replacement Considerations

Direct substitutes within the same series may offer different physical footprints or gain characteristics. Verify mechanical compatibility and impedance matching when considering alternative part numbers from the manufacturer. Cross-reference datasheets to ensure equivalent return loss and efficiency metrics are maintained.
