AANI-CH-0070-Q

Antennas RF Overview

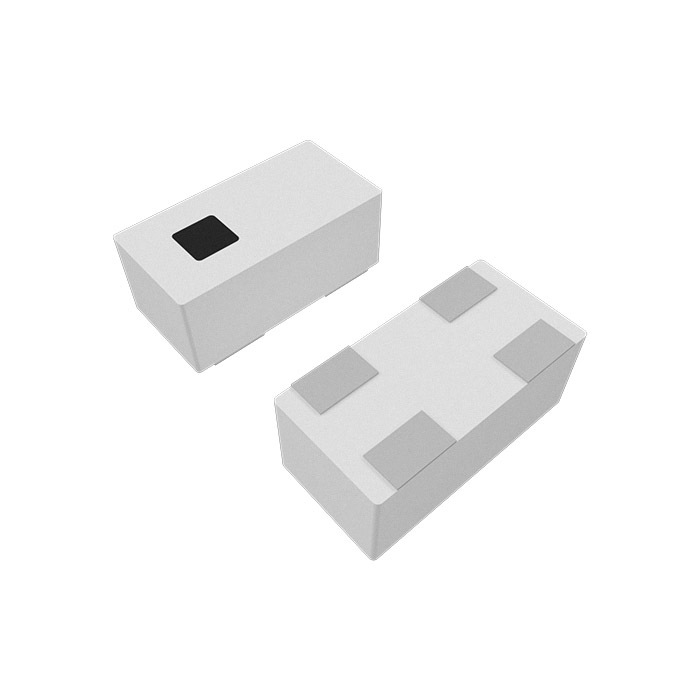

The AANI-CH-0070-Q-T is an internal embedded loop chip antenna designed for Bluetooth and Wi-Fi applications. It operates within a frequency range of 2400 MHz to 2500 MHz, with a primary center frequency of 2450.0 MHz. The component features a gain of 2.8 dBi and maintains a VSWR of 2.5:1. It has a physical footprint of 1.0 x 0.5 x 0.4 mm and utilizes edge surface mount technology. The antenna supports protocols including BT/Wi-Fi and is rated for automotive use under AEC-Q200 standards.

Antennas RF Feature Summary

• AEC-Q200 qualified for automotive reliability requirements
• Compact loop chip design for space-constrained PCB layouts
• Edge surface mount configuration for efficient integration

Antennas RF Applications

• Bluetooth Low Energy (BLE) modules
• Wi-Fi connectivity devices
• Automotive telematics systems
• IoT sensor nodes requiring ISM band operation

Antennas RF Procurement Notes

Verify the specific suffix 'Q' confirms AEC-Q200 automotive qualification status against the manufacturer's current datasheet revision. Ensure the 'T' suffix indicates tape-and-reel packaging if automated assembly is required. Cross-reference the full part number AANI-CH-0070-Q-T with official Abracon documentation to confirm availability and exact mechanical dimensions before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when automotive-grade certification is mandatory for wireless connectivity solutions. The 2.8 dBi gain and 50-ohm impedance are suitable for standard RF front-end designs. Consider the small 1.0 x 0.5 mm footprint for dense PCB arrangements. Validate that the 2400-2500 MHz range aligns with regional regulatory requirements for Bluetooth and Wi-Fi operations in the target market.

Antennas RF Part Context

This model belongs to Abracon's AANI-CH series of internal/embedded antennas. It is specifically engineered for short-range wireless communication protocols operating in the 2.4 GHz ISM band. The product line emphasizes miniaturization and high performance for modern electronic devices requiring reliable RF transmission in compact form factors.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must consult the official Abracon replacement guide or contact technical support directly for equivalent components with matching electrical and mechanical specifications.
