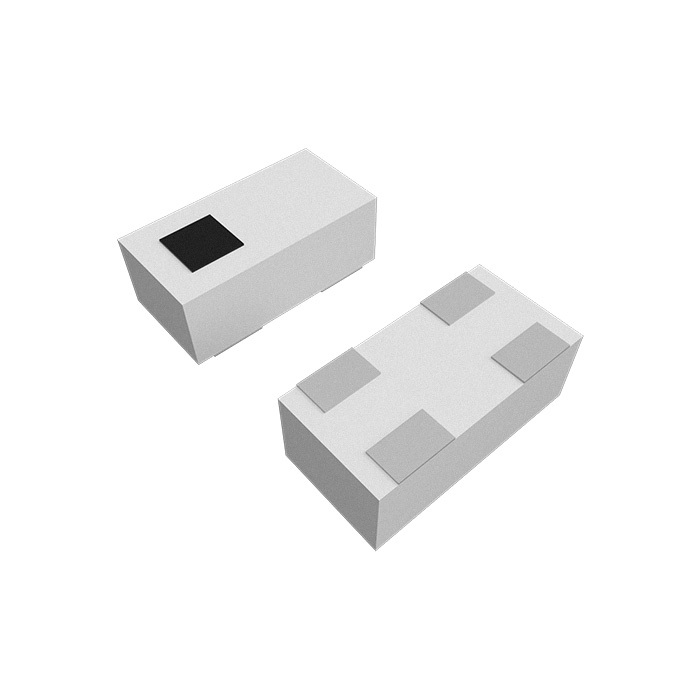

AANI-CH-0070

$0.31

Description：RF ANTENNA 2.4 GHz CERAMIC CHIP
Series：AANI-CH
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b27d439d7f38 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AANI-CH-0070 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANTENNA 2.4 GHz CERAMIC CHIP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AANI-CH-0070

Description：RF ANTENNA 2.4 GHz CERAMIC CHIP
Series：AANI-CH
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2.5
Return Loss：-7.2dB
Gain：2.8dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.016" (0.40mm)
Applications：Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
Power - Max：2 W

Antennas RF datasheet and documents for AANI-CH-0070

AANI-CH-0070

Antennas RF Overview

The AANI-CH-0070 is a ceramic chip antenna designed for the 2.4 GHz ISM band, specifically covering 2.45 GHz. It features a linear polarization and a nominal gain of 1.7 dBi. The component operates with a 50 ohm impedance and supports up to 2W power handling. It utilizes a surface mount solder termination for PCB integration.

Antennas RF Feature Summary

Compact physical footprint optimized for space-constrained designs
Broadband capability supporting multiple wireless protocols including Bluetooth, Wi-Fi, Zigbee, Thread, and Matter

Antennas RF Applications

Bluetooth Low Energy (BLE) modules
Wi-Fi IoT devices
Zigbee sensor networks
Thread-based smart home applications

Antennas RF Procurement Notes

Verify the specific suffix code on the ordering part number to confirm exact packaging and tape-and-reel specifications. Ensure the procurement documentation matches the required RoHS compliance status and lead time constraints for the production schedule.

Antennas RF Selection Notes

Select this component when a minimal board area is critical for the RF design. It is suitable for platforms requiring support for various 2.4 GHz standards without needing separate antennas for each protocol.

Antennas RF Part Context

This model belongs to Abracon's high-performance RF ceramic chip antenna series. It is marketed as one of the smallest solutions in its class for the 2.4 GHz frequency range, targeting modern compact wireless electronics.
