AANI-CH-0072-T

Antennas RF Overview

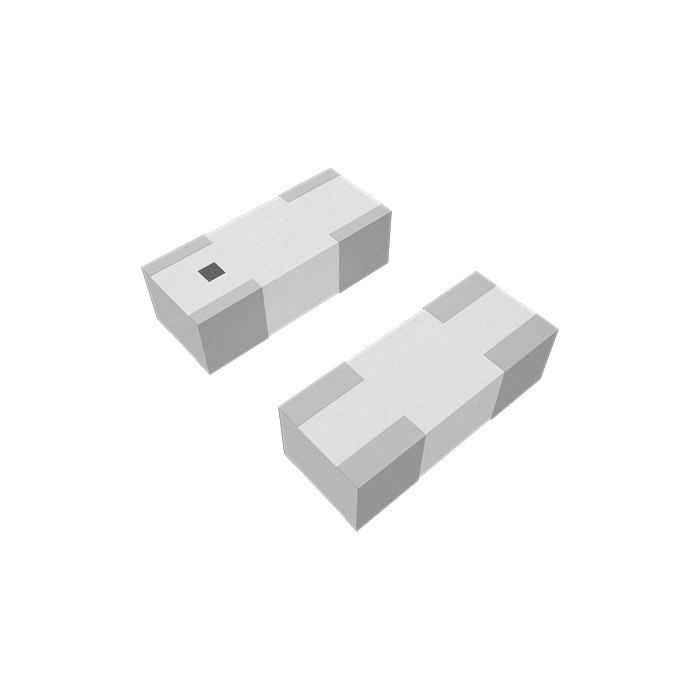

The AANI-CH-0072-T is a surface-mount chip antenna designed for 2.4 GHz ISM band applications, specifically Bluetooth and Wi-Fi protocols. Manufactured by Abracon using low-temperature co-fired ceramic (LTCC) technology, it features an on-metal design capability that simplifies integration into compact electronic devices. The component operates with a maximum power rating of 2 W and provides a gain of 0.6 dBi. It utilizes solder termination for PCB mounting and exhibits a return loss of -5.1 dB.

Antennas RF Feature Summary

• On-metal design compatibility for simplified enclosure integration
• Compact LTCC construction for space-constrained applications
• Optimized for 2.4 GHz Bluetooth and Wi-Fi frequency bands

Antennas RF Applications

• Bluetooth Low Energy (BLE) modules
• Wi-Fi enabled IoT devices
• Compact wireless communication hardware

Antennas RF Procurement Notes

Verify the specific suffix '-T' indicates the tape-and-reel packaging configuration as per Abracon's standard naming conventions. Confirm the operating temperature range and RoHS compliance status directly from the latest official datasheet before finalizing procurement specifications to ensure alignment with environmental regulations.

Antennas RF Selection Notes

Select this component when an on-metal antenna solution is required for 2.4 GHz applications to reduce overall system profile. The LTCC technology offers reliability in harsh environments. Ensure the host PCB ground plane design accommodates the specific on-metal requirements detailed in the evaluation board documentation for optimal performance.

Antennas RF Part Context

This part belongs to Abracon's high-performance RF ceramic chip antenna series. These antennas leverage advanced LTCC processes to deliver consistent electrical performance in small form factors. The product line targets the growing demand for miniaturized wireless connectivity solutions in consumer electronics and industrial IoT sectors.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other Abracon AANI-CH series variants only if they match the exact 2.4 GHz frequency, on-metal requirement, and physical footprint constraints.
