AANI-CH-0129-Q

Antennas RF Overview

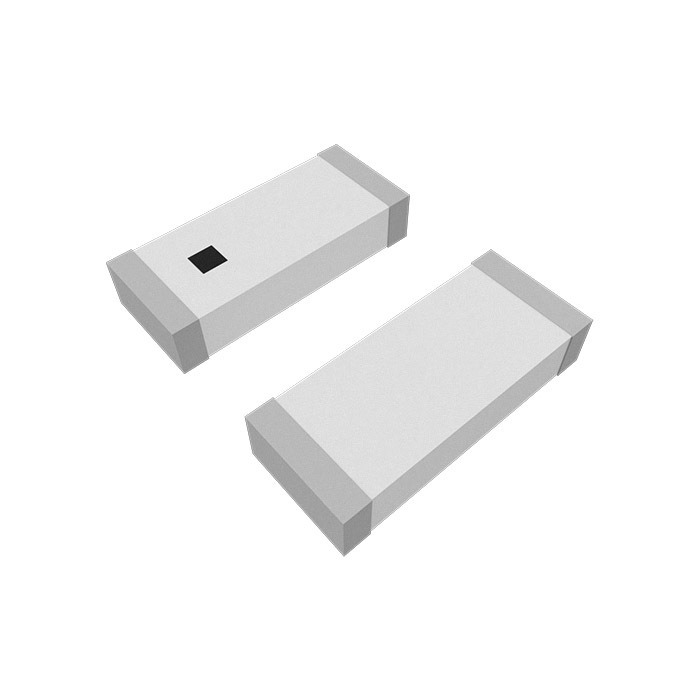

The Abracon AANI-CH-0129-Q-T is a chip antenna designed for Bluetooth, Wi-Fi, Zigbee, Thread, and Matter applications. It operates within the 2.4 GHz to 2.5 GHz frequency range with a center frequency of 2.45 GHz. The component features a linear polarization, 3.3 dBi gain, and a 50 Ohm impedance. It exhibits a VSWR of 1.6:1 and measures 5.2 mm in length by 1 mm in height. This surface-mount device supports protocols including 802.11 and 802.15.1.

Antennas RF Feature Summary

• Supports multiple wireless protocols including Bluetooth, Wi-Fi, Zigbee, Thread, and Matter
• Compact surface-mount chip design suitable for space-constrained PCB layouts
• Optimized performance for 2.4 GHz ISM band communications

Antennas RF Applications

• Bluetooth Low Energy (BLE) modules
• Wi-Fi enabled IoT devices
• Thread and Matter smart home controllers
• Zigbee sensor networks

Antennas RF Procurement Notes

Verify the specific suffix 'Q' against official Abracon documentation to confirm automotive-grade qualification status. Ensure the ordering part number matches the exact variant required for your design. Cross-reference the datasheet for precise mechanical dimensions and soldering recommendations to guarantee proper integration.

Antennas RF Selection Notes

Select this component when multi-protocol support at 2.4 GHz is required in a small form factor. The 3.3 dBi gain and 1.6 VSWR indicate efficient radiation characteristics. Consider the 50 Ohm impedance match for standard RF traces. Evaluate the 1 mm height constraint against available vertical clearance on the target PCB assembly.

Antennas RF Part Context

This model belongs to Abracon's AANI series of passive components, specifically focusing on RF antennas. The series includes various chip and patch antennas for different frequency bands. The AANI-CH-0129-Q-T variant targets short-range wireless communication standards prevalent in modern consumer electronics and industrial IoT applications.

Antennas RF Replacement Considerations

The AANI-CH-0129-T is a non-automotive grade alternative within the same family. Verify if the 'Q' suffix denotes specific automotive reliability requirements that the standard version does not meet. Consult the manufacturer for direct cross-references if the Q-series is unavailable.
