AANI-CH-0129-T

Antennas RF Overview

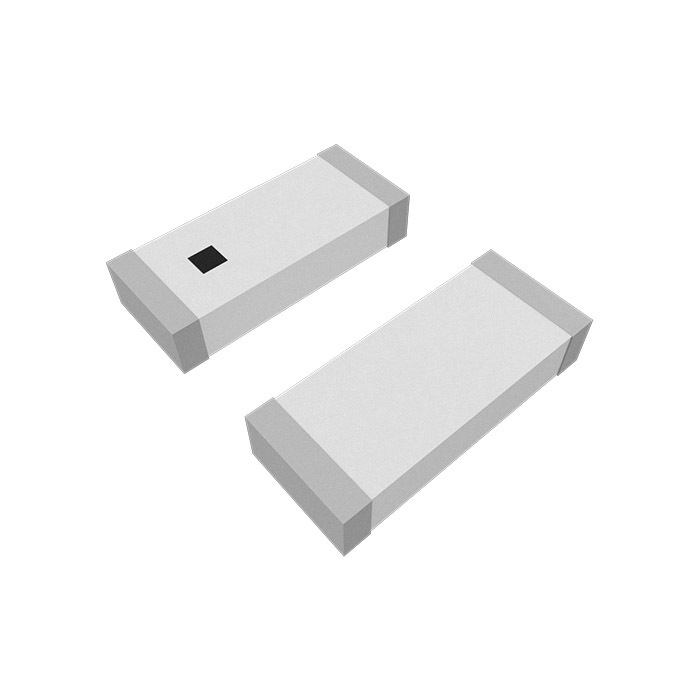

The AANI-CH-0129-T is a surface-mount chip antenna designed for the 2.4 GHz ISM band, specifically covering 2.4 to 2.5 GHz. It supports Bluetooth, Wi-Fi, Zigbee, Thread, and Matter protocols. Key electrical parameters include a gain of 3.3 dBi, a maximum power rating of 3 W, an impedance of 50 Ohms, and a return loss of -12.2 dB. The physical dimensions are 5.0 x 2.0 x 1.1 mm with a length of 5.2 mm. It operates within a temperature range up to +85 C and features solder termination.

Antennas RF Feature Summary

• Supports multiple short-range wireless standards including Bluetooth, Wi-Fi, Zigbee, Thread, and Matter.
• Optimized for high-performance data transmission in the 2.4 GHz industrial, scientific, and medical band.
• Designed for compact surface-mount integration with end mounting configuration.

Antennas RF Applications

• Bluetooth Low Energy (BLE) device connectivity
• Wi-Fi enabled smart home appliances
• Zigbee and Thread mesh network nodes
• Matter protocol compatible IoT devices

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct specifications. Confirm that the required variant matches the intended application frequency and mounting requirements. Cross-reference the part number with authorized distributors to validate authenticity and availability status before finalizing procurement orders.

Antennas RF Selection Notes

Select this component for applications requiring support for multiple 2.4 GHz wireless protocols within a compact form factor. Ensure the design accommodates the specified 50 Ohm impedance and surface-mount footprint. Consider the maximum operating temperature and power handling capabilities relative to the system environment and regulatory compliance requirements.

Antennas RF Part Context

This model belongs to Abracon's RF ceramic chip antenna series, engineered for short-range high-precision data transmission. It serves as a passive component solution for modern wireless communication modules, providing reliable signal integrity for various industrial and consumer electronics applications requiring standardized wireless connectivity.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's official documentation or authorized distributor databases for verified cross-reference information when evaluating alternative components for this specific application.

Antennas RF FAQ

What wireless protocols does the AANI-CH-0129-T support?

It supports Bluetooth, Wi-Fi, Zigbee, Thread, and Matter protocols within the 2.4 GHz band.

What is the physical size of the antenna?

The dimensions are 5.0 x 2.0 x 1.1 mm with a length of 5.2 mm.
