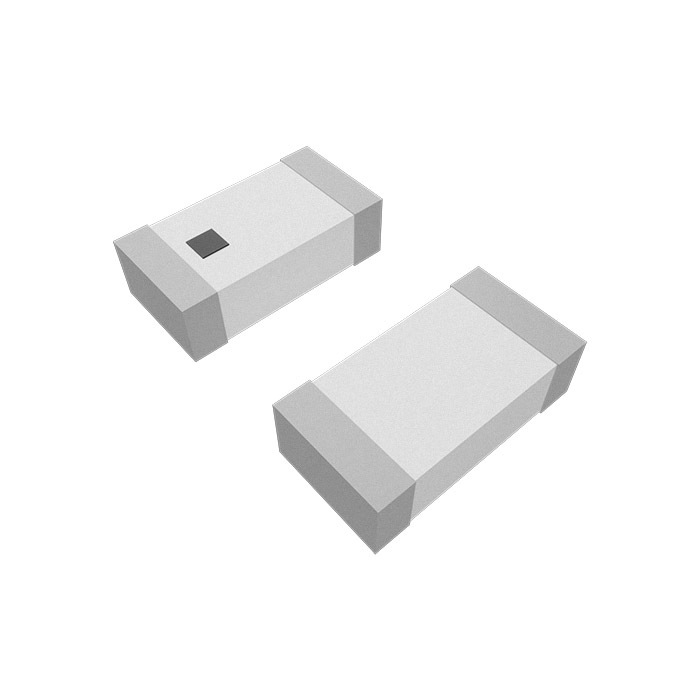

AANI-CH-0133-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT BT/WI-FI CHIP SOLDER. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANI-CH-0133-T
- Description：RF ANT BT/WI-FI CHIP SOLDER
- Series：-
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-9.3dB
- Gain：1.1dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.018" (0.45mm)
- Applications：Bluetooth, Wi-Fi, Zigbee™
- Power - Max：2 W
Antennas RF datasheet and documents for AANI-CH-0133-T
Antennas RF Overview
The Abracon AANI-CH-0133-T is a surface-mount chip antenna designed for Bluetooth, Wi-Fi, and Zigbee applications. It operates within the 2.4 GHz to 2.5 GHz frequency range with a gain of 1.1 dBi. The component features a 50 Ohm impedance and a VSWR of 2.0:1. It supports a power rating of 2 W and functions between -40°C and +85°C. Dimensions are 1.6 mm x 0.8 mm x 0.4 mm.
Antennas RF Feature Summary
- Designed for compact wireless connectivity in Bluetooth, Wi-Fi, and Zigbee systems
- Optimized for small keepout areas with corner mounting capability
Antennas RF Applications
- Bluetooth wireless communication modules
- Wi-Fi enabled devices
- Zigbee network components
Antennas RF Procurement Notes
Verify that the specific part number suffix matches the required operating temperature range. The standard 'T' suffix indicates commercial grade (-40°C to +85°C), while automotive-grade variants use different suffixes such as 'Q'. Confirm RoHS compliance status and ensure the supplier provides valid datasheets matching the manufacturer's official documentation.
Antennas RF Selection Notes
Select this component when space constraints require a small footprint antenna with corner mounting flexibility. Ensure the application environment remains within the specified commercial temperature limits. Verify that the host PCB design accommodates the required keepout area for optimal performance at 2.45 GHz.
Antennas RF Part Context
This model belongs to the Abracon AANI-CH series of RF ceramic chip antennas. It serves as a compact solution for short-range wireless protocols. The series includes automotive-grade variants like the AANI-CH-0133-Q-T, which share similar electrical characteristics but offer extended temperature ranges.
Antennas RF Replacement Considerations
The AANI-CH-0133-Q-T is a verified substitute offering identical electrical specifications with an extended temperature range up to +125°C. Ensure the replacement matches the physical dimensions and mounting requirements of the original design.
