AANI-CH-0136-T

Antennas RF Overview

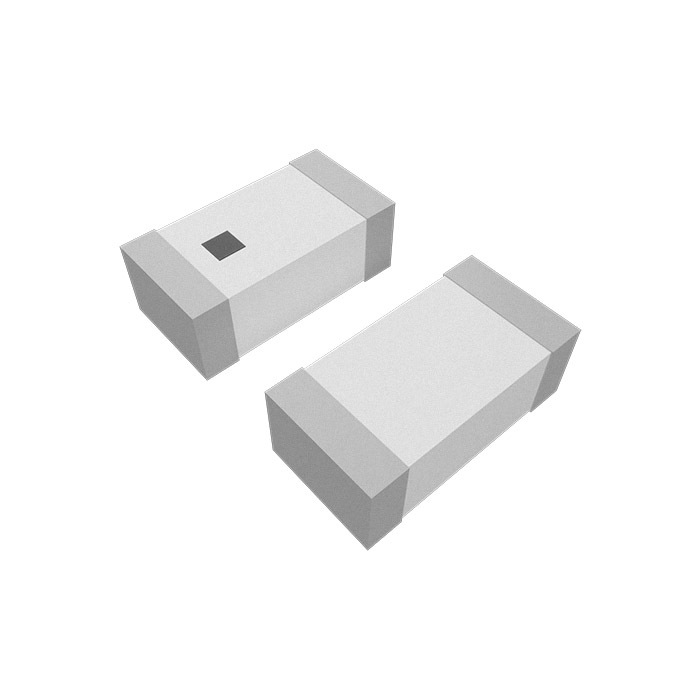

The Abracon AANI-CH-0136-T is a surface-mount Ultra-Wideband (UWB) chip antenna designed for high-precision short-range data transmission. It operates within the frequency range of 6.24 GHz to 8.237 GHz, providing a gain of 3.9 dBi with a 50 Ohm impedance. The component features a compact footprint measuring 3.2 mm in length and 1.1 mm in height, facilitating integration into space-constrained PCB designs.

Antennas RF Feature Summary

• Miniaturized surface-mount design optimized for PCB corner-mount integration
• Supports Ultra-Wideband applications requiring high-precision data transmission
• Engineered for efficient integration into compact electronic devices

Antennas RF Applications

• Short-range high-precision data transmission systems
• Ultra-Wideband positioning and tracking applications
• Compact consumer electronics requiring UWB connectivity

Antennas RF Procurement Notes

Verify the specific ordering suffix and tape/reel packaging details directly with authorized distributors or the manufacturer. Confirm that the component meets all required regulatory standards for the target market. Ensure compatibility with the intended PCB layout and impedance matching network before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a low-profile UWB solution is required for precise location-based services. The small form factor suits devices where board space is limited. Evaluate the 3.9 dBi gain against system link budget requirements. Consider the surface-mount orientation for automated assembly processes.

Antennas RF Part Context

This component belongs to Abracon's AANI-CH series of chip antennas, which are engineered for RF applications. The series includes various models supporting different frequency bands such as Bluetooth, Wi-Fi, and GNSS. This specific part focuses on the UWB spectrum, distinguishing it from broader multi-band or single-frequency alternatives in the portfolio.

Antennas RF Replacement Considerations

Direct substitutes include other UWB chip antennas from Abracon, such as the AANI-CH-0131 or AANI-CH-0136 variants, provided they match the required frequency range and physical dimensions. Verify pinout and mounting style compatibility before substitution.
