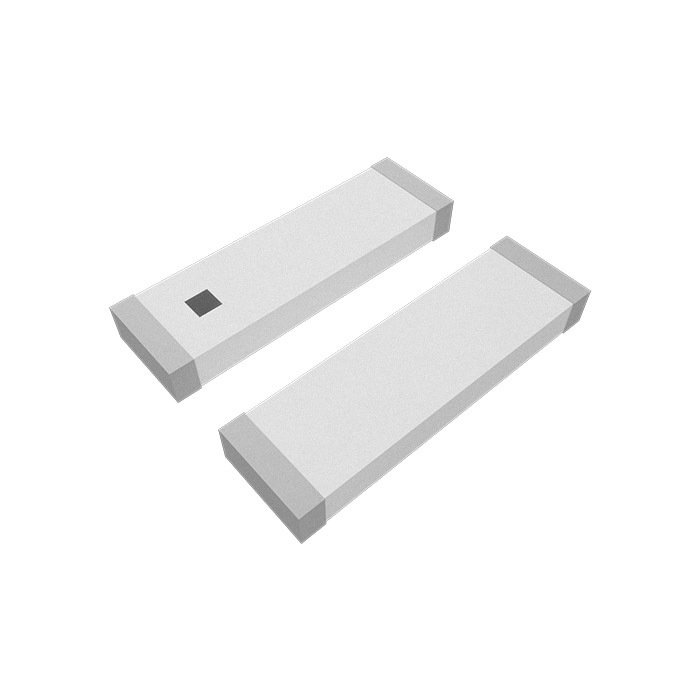

AANI-CH-0171-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 868/915MHZ LORA/SUB-GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANI-CH-0171-T
- Description：RF ANT 868/915MHZ LORA/SUB-GHZ
- Series：-
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：802.15.4, General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：895.5MHz
- Frequency Range：863MHz ~ 928MHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：1.9, 2.6, 4.2
- Return Loss：-10.1dB, -7dB, -4.2dB
- Gain：1.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.031" (0.80mm)
- Applications：LoRa, LPWA, Sigfox, Wi-Fi, Wi-SUN, W-MBUS, Zigbee™
- Power - Max：2 W
Antennas RF datasheet and documents for AANI-CH-0171-T
Antennas RF Overview
The AANI-CH-0171-T is a surface-mount internal or embedded antenna manufactured by Abracon LLC. Designed for sub-GHz and LoRa applications, it operates within the 868 MHz and 915 MHz frequency bands. The component utilizes a chip-style mechanical form factor with standard solder terminations for PCB integration. It supports protocols associated with long-range low-power communication networks.
Antennas RF Feature Summary
- Supports sub-GHz and LoRa communication protocols
- Surface-mount chip design for embedded integration
- Operates at 868 MHz and 915 MHz frequencies
Antennas RF Applications
- LoRaWAN sensor nodes
- Sub-GHz IoT telemetry devices
- Embedded wireless communication modules
Antennas RF Procurement Notes
Verify the specific frequency band variant required for your target market, as regional regulations differ between 868 MHz and 915 MHz operations. Confirm that the surface-mount footprint matches your PCB layout constraints. Ensure compatibility with the intended RF front-end circuitry for optimal signal integrity. Check current availability status as supply levels may vary.
Antennas RF Selection Notes
Select this component when a compact, embedded solution for sub-GHz or LoRa connectivity is required. It is suitable for space-constrained designs where external antennas are impractical. Consider the operating temperature range and impedance matching requirements of the host system to ensure reliable performance in the final application environment.
Antennas RF Part Context
This part belongs to Abracon's portfolio of integrated and embedded antennas. It is categorized under RF antennas designed for short-range wireless communication. The product line focuses on providing reliable connectivity solutions for IoT and industrial applications using standard surface-mount technology.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for cross-reference data.
