AANI-FB-0083-0050I

Antennas RF Overview

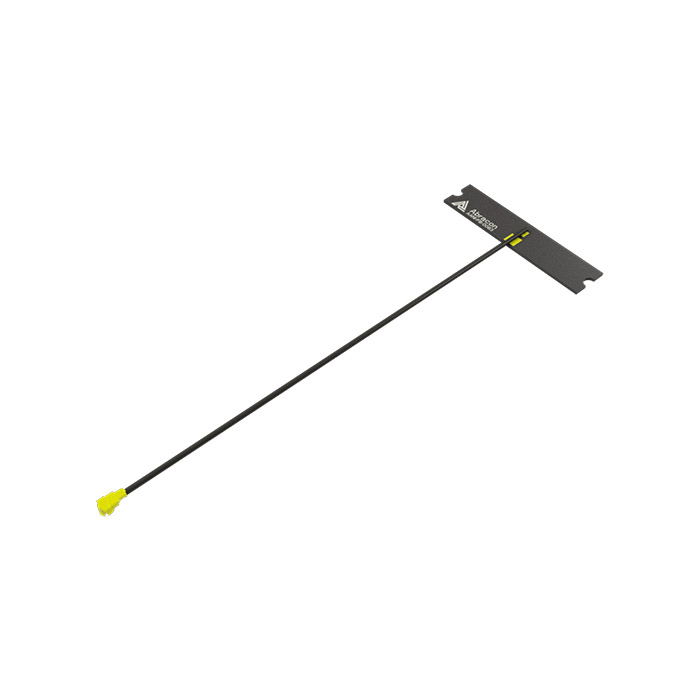

The AANI-FB-0083-0050I is a tri-band flexible printed circuit (FPC) antenna designed for Wi-Fi 6E and Wi-Fi 7 applications. It operates across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands to support high-speed wireless connectivity standards including 802.11ax/be. The component features an adhesive mounting style for secure attachment to device enclosures. It is engineered with a compact design that achieves high radiation efficiency of up to 90%. The unit supports Bluetooth, WLAN, and Zigbee protocols alongside primary Wi-Fi functions.

Antennas RF Feature Summary

• Tri-band operation supporting 2.4, 5, and 6 GHz frequencies for Wi-Fi 6E/7 compatibility
• High radiation efficiency reaching up to 90% within a compact form factor
• Adhesive mounting configuration suitable for flat surface installation on plastic or human body surfaces

Antennas RF Applications

• Wi-Fi 6E and Wi-Fi 7 router integration
• Smart home IoT devices requiring multi-band connectivity
• Wearable technology and health monitoring devices
• Industrial handheld terminals and mobile computing hardware

Antennas RF Procurement Notes

Verify the specific suffix '0050I' against the manufacturer's official datasheet to confirm impedance matching and connector type requirements. Ensure the adhesive backing specifications align with the target enclosure material properties. Cross-reference operating temperature limits of -40°C to +85°C with environmental constraints. Confirm regulatory compliance status for intended market regions prior to final procurement authorization.

Antennas RF Selection Notes

Select this component when tri-band coverage across 2.4, 5, and 6 GHz is required for next-generation Wi-Fi standards. The high efficiency rating makes it suitable for space-constrained designs where signal integrity is critical. Consider the adhesive mounting option if through-hole or surface-mount soldering is not feasible. Validate compatibility with host RF circuits for Bluetooth and Zigbee coexistence needs.

Antennas RF Part Context

This model belongs to Abracon's AANI-FB series of flexible PCB antennas. The series includes variants such as AANI-FB-0083-0100I and AANI-FB-0084-0050I, which share similar tri-band capabilities but may differ in physical dimensions or connector interfaces. The family is characterized by its suitability for modern wireless communication devices requiring compact, high-performance antenna solutions.

Antennas RF Replacement Considerations

Direct substitutes include AANI-FB-0083-0100I and AANI-FB-0084-0050I from the same manufacturer. Verify mechanical fit and electrical parameters before substitution. No cross-manufacturer replacements are confirmed in public documentation.
