AANI-FB-0084-0200W

Antennas RF Overview

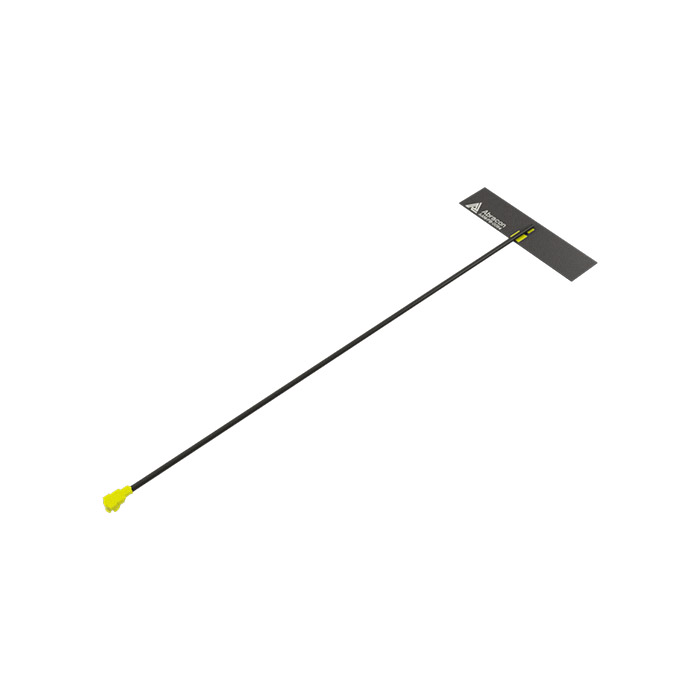

The AANI-FB-0084-0200W is a tri-band flexible printed circuit (FPC) antenna manufactured by Abracon LLC. It supports Wi-Fi 6E/7 and Bluetooth protocols across three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz. The component features an adhesive mounting style and operates within a temperature range of -40°C to +85°C. Physical dimensions are 34.8 mm in length, 8.9 mm in width, and 0.2 mm in height. It utilizes an MHF-1 or u.FL connector interface with cable lengths ranging from 50 mm to 300 mm. Gain specifications are 2.9 dBi at 2.4 GHz, 4.7 dBi at 5 GHz, and 5.4 dBi at 6 GHz.

Antennas RF Feature Summary

• Tri-band capability supporting Wi-Fi 6E/7 and Bluetooth standards
• Compact flexible design suitable for plastic and human body installation
• High efficiency performance up to 90%
• Adhesive mounting for easy surface integration

Antennas RF Applications

• Wi-Fi 6E/7 enabled devices
• Bluetooth connectivity modules
• IoT applications requiring compact antennas
• Wearable technology integration

Antennas RF Procurement Notes

Verify the specific connector type (MHF-1 or u.FL) and required cable length against system requirements before ordering. Confirm that the adhesive mounting method aligns with the target enclosure material. Ensure the operating temperature range meets the environmental conditions of the final application. Cross-reference the datasheet for precise mechanical tolerances and impedance matching details.

Antennas RF Selection Notes

Select this model when space constraints require a low-profile, flexible antenna solution. Consider the tri-band coverage if simultaneous Wi-Fi and Bluetooth operation is necessary. Evaluate the gain requirements for each band to ensure adequate signal strength. Verify compatibility with the host device's RF front-end and connector interface options.

Antennas RF Part Context

This component belongs to Abracon's internal and embedded antenna portfolio, specifically designed for modern wireless communication standards. It addresses the need for high-efficiency, small-form-factor antennas in consumer electronics and IoT devices. The series supports advanced Wi-Fi protocols and maintains reliable Bluetooth connectivity in compact packages.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Abracon catalogs for direct replacements or updated series models.
