AANI-FB-0086-0150I

Antennas RF Overview

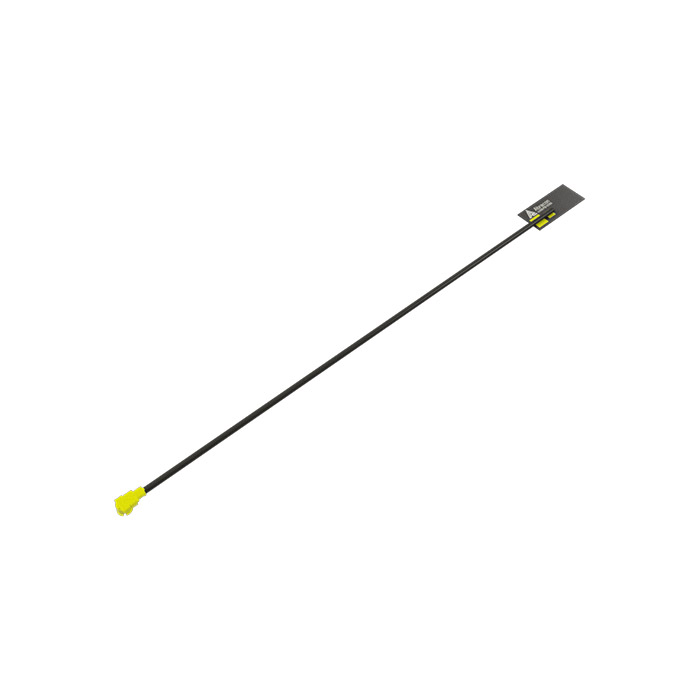

The AANI-FB-0086-0150I is a tri-band flexible printed circuit (FPC) antenna designed for Wi-Fi 6E and Wi-Fi 7 applications. It operates across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, supporting IEEE 802.11b/g/n/ac/ax/be standards alongside Bluetooth and Zigbee protocols. The component features a 50 Ohm impedance and utilizes an I-PEX MHF1 (U.FL) connector interface. Physical dimensions include a length of 15.5 mm and a height of 0.2 mm, with a maximum operating temperature of +85°C.

Antennas RF Feature Summary

• Supports tri-band operation for Wi-Fi 6E/7, Bluetooth, and Zigbee
• Compact flat patch design suitable for adhesive installation on plastic or human body surfaces
• High efficiency up to 75% in compact form factor

Antennas RF Applications

• Wi-Fi 6E and Wi-Fi 7 enabled devices
• Bluetooth Low Energy (BLE) modules
• Zigbee wireless sensor networks
• WLAN connectivity solutions

Antennas RF Procurement Notes

Verify that the specific part number matches the required tri-band specification for Wi-Fi 6E/7 operations. Confirm the connector type is I-PEX MHF1 (U.FL) and check compliance with RoHS3 regulations. Ensure the adhesive mounting method aligns with the target device's enclosure material, as this antenna supports installation on plastic and human body surfaces.

Antennas RF Selection Notes

Select this component when tri-band coverage across 2.4, 5, and 6 GHz is required for modern Wi-Fi standards. The low profile of 0.2 mm height makes it suitable for space-constrained designs. Consider the adhesive installation method if mechanical fasteners are not feasible. Verify compatibility with I-PEX MHF1 connectors on the host PCB.

Antennas RF Part Context

This model belongs to the AANI-FB series of tri-band FPC antennas from Abracon. These antennas are engineered for high efficiency in compact designs. The series supports various wireless protocols including Wi-Fi, Bluetooth, and Zigbee, offering flexibility for multi-protocol IoT and communication devices.

Antennas RF Replacement Considerations

Other variants in the AANI-FB series, such as AANI-FB-0086-0100I or AANI-FB-0086-0200I, may serve as alternatives depending on specific length or performance requirements within the same tri-band family.
