Description：STAMPED METAL NICHE WIFI 7
Series：AANI-NI
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:584be1903129 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AANI-NI-0012 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is STAMPED METAL NICHE WIFI 7. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AANI-NI-0012

Description：STAMPED METAL NICHE WIFI 7
Series：AANI-NI
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 6.137GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz
Antenna Type：Stamped Metal
Number of Bands：3
VSWR：2.6, 2.9
Return Loss：-7.1dB, -6.2dB
Gain：3.2dBi, 4.2dBi
Features：-
Termination：SMD
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.028" (0.72mm)
Applications：IoT, M2M, Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7
Power - Max：-

Antennas RF datasheet and documents for AANI-NI-0012

AANI-NI-0012

Antennas RF Overview

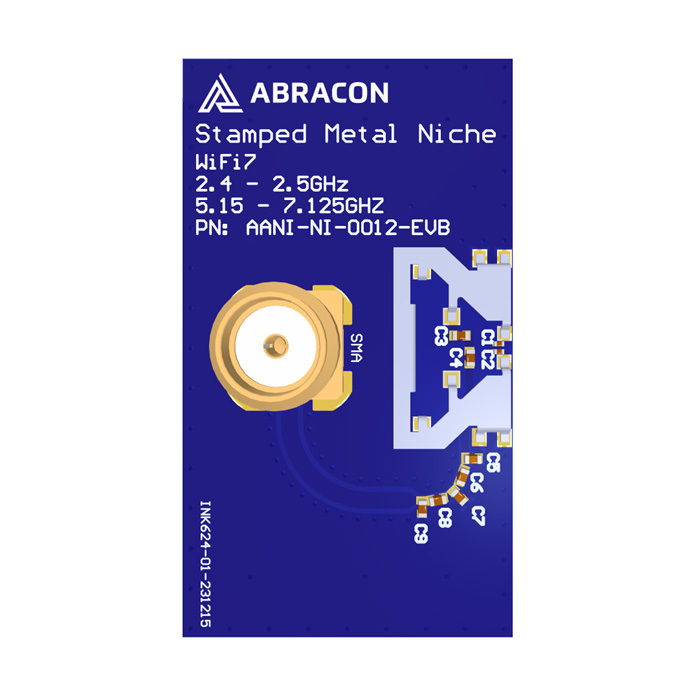

The AANI-NI-0012 is a stamped metal niche Wi-Fi 7 antenna manufactured by Abracon LLC. It operates across the 2400 to 2500 MHz and 5150 to 7125 MHz frequency bands, supporting dual-band connectivity for IoT, M2M, Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7 applications. The component features linear polarization and surface mount termination. Key electrical parameters include a peak gain of 3.2 dBi and 4.2 dBi, with return loss values of -7.1 dB and -6.2 dB. Its physical dimensions are 12.00 mm x 7.00 mm x 0.72 mm.

Antennas RF Feature Summary

Highly efficient performance suitable for solutions requiring potting, coating, or over-molding
Low profile design utilizing stamped metal construction
Linear polarization for reliable signal transmission

Antennas RF Applications

Wi-Fi 7 enabled devices
IoT modules
M2M communication systems

Antennas RF Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm current specifications. Ensure compatibility with the target PCB layout regarding the 12mm x 7mm footprint and 0.72mm height constraint. Confirm that the operating frequency ranges align with regional regulatory requirements for the intended deployment environment.

Antennas RF Selection Notes

Select this component when a low-profile, robust antenna is required for dense electronic environments involving potting or molding processes. The dual-band capability supports modern Wi-Fi standards including Wi-Fi 6E and Wi-Fi 7. Consider the stamped metal construction for cost-effective manufacturing while maintaining high efficiency and linear polarization characteristics.

Antennas RF Part Context

This part belongs to Abracon’s internal embedded antenna portfolio, specifically designed for niche Wi-Fi applications. It addresses the need for compact, high-performance antennas in space-constrained devices. The product line emphasizes robustness against environmental factors like conformal coating, distinguishing it from standard surface-mount alternatives.
