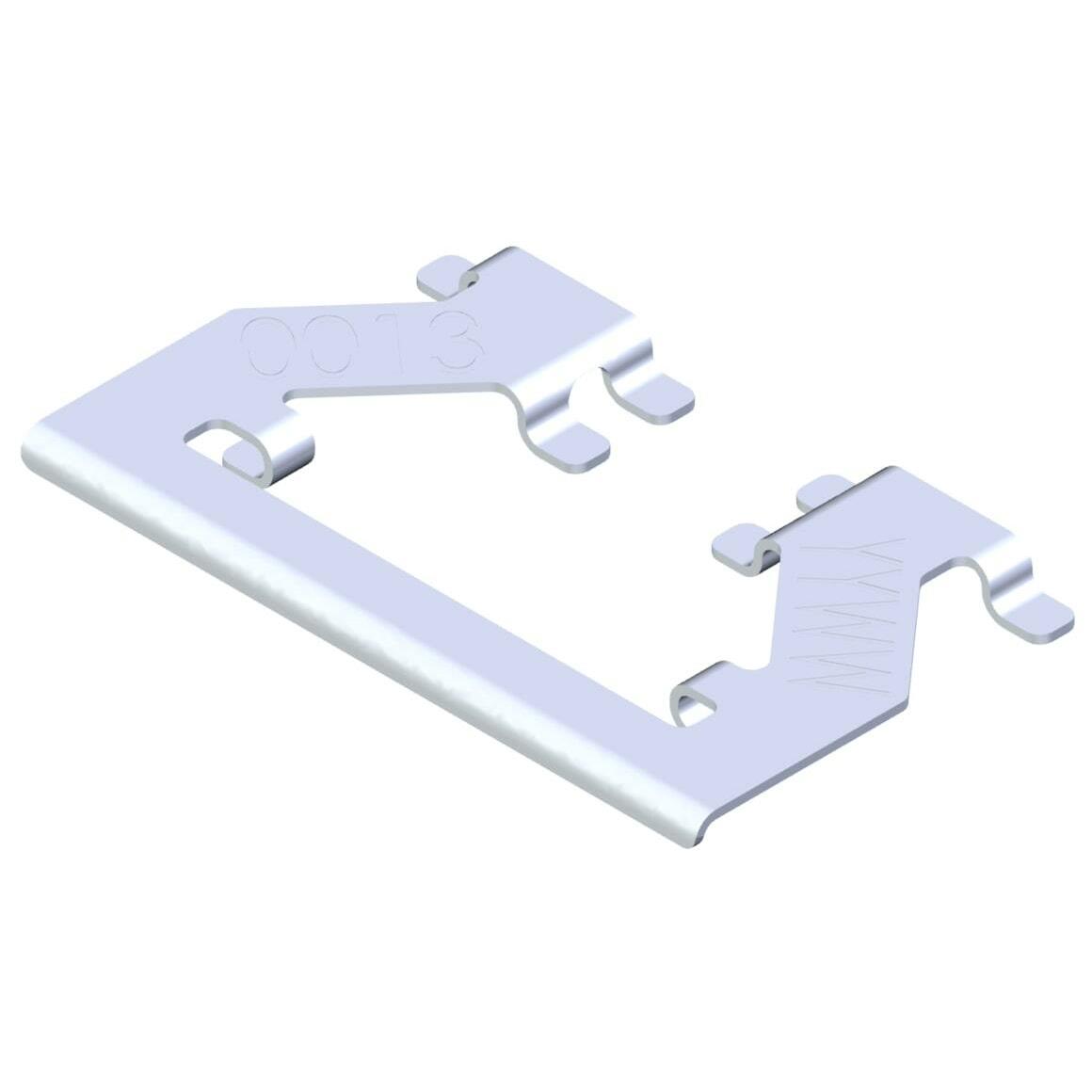

AANI-NI-0013 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is STAMPED METAL NICHE 2.4GHz. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANI-NI-0013
- Description：STAMPED METAL NICHE 2.4GHz
- Series：AANI-NI
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Stamped Metal
- Number of Bands：1
- VSWR：-
- Return Loss：-10.1dB
- Gain：3.2dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.022" (0.55mm)
- Applications：Bluetooth, Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for AANI-NI-0013
Antennas RF Overview
The Abracon AANI-NI-0013 is a stamped metal niche antenna designed for surface mount applications. It operates within the 2400MHz to 2500MHz frequency range, providing linear polarization. The component features a peak gain of 3.2dBi and maintains a standard 50Ω impedance. Physical dimensions include a maximum height of 0.54mm (0.022 inches) and an overall length of 8mm. The return loss is specified at -10.1dB, ensuring efficient signal transmission.
Antennas RF Feature Summary
- Stamped metal construction for durable surface mount integration
- Optimized performance in the 2.4GHz ISM band
- Low profile design suitable for space-constrained devices
Antennas RF Applications
- Wi-Fi connectivity modules
- Bluetooth wireless peripherals
- Wireless remote control systems
Antennas RF Procurement Notes
Verify that the specific part number matches the required frequency range and physical footprint for your PCB layout. Confirm surface mount compatibility and soldering requirements with the manufacturer's datasheet. Ensure environmental ratings meet operational standards. Cross-reference official documentation for any updates on material composition or regulatory compliance status prior to finalizing procurement orders.
Antennas RF Selection Notes
Select this antenna when a low-profile, stamped metal solution is required for 2.4GHz applications. Consider the 3.2dBi gain and 50Ω impedance match for system integration. Evaluate the 0.54mm height constraint against enclosure design limitations. Compare against other niche antennas if higher gain or different polarization is needed.
Antennas RF Part Context
This component belongs to Abracon’s line of RF antennas, specifically focusing on stamped metal niche designs. These antennas are engineered for compact electronic devices requiring reliable wireless communication. The AANI-NI-0013 represents a specialized solution for short-range data transmission in crowded frequency bands.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon directly for equivalent components or updated series replacements.
