AANI-NI-0014 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is STAMPED METAL NICHE UWB. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANI-NI-0014
- Description：STAMPED METAL NICHE UWB
- Series：AANI-NI
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Ultra Wide Band
- Frequency Group：Ultra Wide Band
- Frequency (Center/Band)：-
- Frequency Range：6.24GHz ~ 8.74GHz
- Antenna Type：Stamped Metal
- Number of Bands：5
- VSWR：-
- Return Loss：-8.9dB, -7.5dB, -7.4dB, -7.7dB, 9.1dB
- Gain：2.8dBi, 3.4dBi, 2.2dBi, 2.5dBi, 2.8dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.019" (0.49mm)
- Applications：UWB
- Power - Max：-
Antennas RF datasheet and documents for AANI-NI-0014
Antennas RF Overview

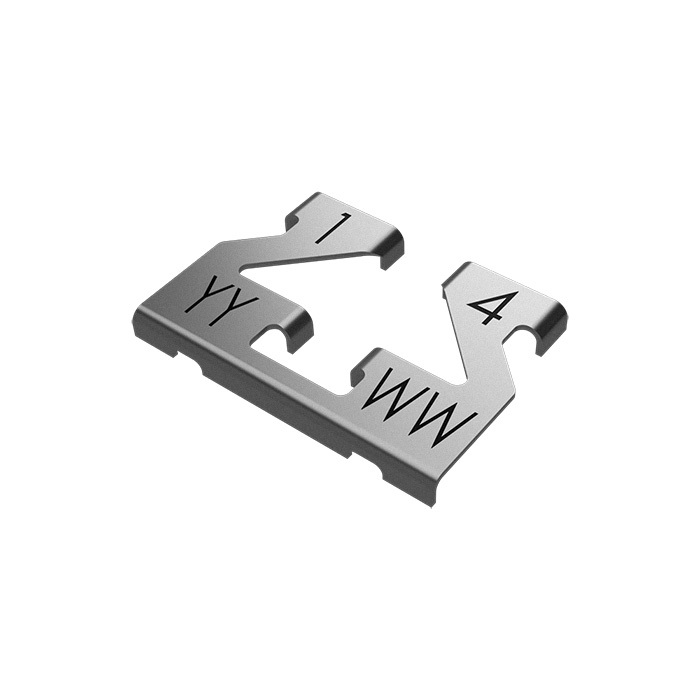

The AANI-NI-0014 is a stamped metal niche ultra-wideband (UWB) chip antenna manufactured by Abracon LLC. It operates within the frequency range of 6.24 GHz to 8.736 GHz and utilizes surface mount technology for integration into compact electronic designs. The component features a physical package size of 5.5mm x 3.9mm x 0.49mm, designed to support high-precision data transmission requirements in short-range applications.
Antennas RF Feature Summary
- Stamped metal niche construction optimized for real-time positioning accuracy
- Surface mount design suitable for compact form factor integration
- High rejection band capability to minimize interference
Antennas RF Applications
- Digital keyless entry systems
- Real-time indoor positioning applications
- Short-range high-precision data transmission modules
Antennas RF Procurement Notes
Verify RoHS compliance status through official manufacturer documentation prior to procurement. Confirm that the specific ordering suffix matches the required frequency range and performance specifications. Ensure the component meets all relevant regulatory standards for UWB operations in the target deployment region. Cross-reference the datasheet version with the current revision to avoid discrepancies in electrical characteristics.
Antennas RF Selection Notes
Select this component when precise centimeter-level positioning accuracy is required for short-range wireless communication. The stamped metal niche design offers a compact footprint ideal for space-constrained devices. Consider the specific operating frequency range of 6.24 GHz to 8.736 GHz to ensure compatibility with existing UWB infrastructure and protocol requirements.
Antennas RF Part Context
This antenna belongs to Abracon's AANI series of ultra-wideband solutions, which are engineered for high-performance short-range communication. The series includes various configurations tailored for different frequency bands and application needs, providing reliable signal integrity for modern wireless positioning and tracking technologies.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative UWB antennas based on matching frequency ranges, package dimensions, and mounting type if substitution is necessary.
