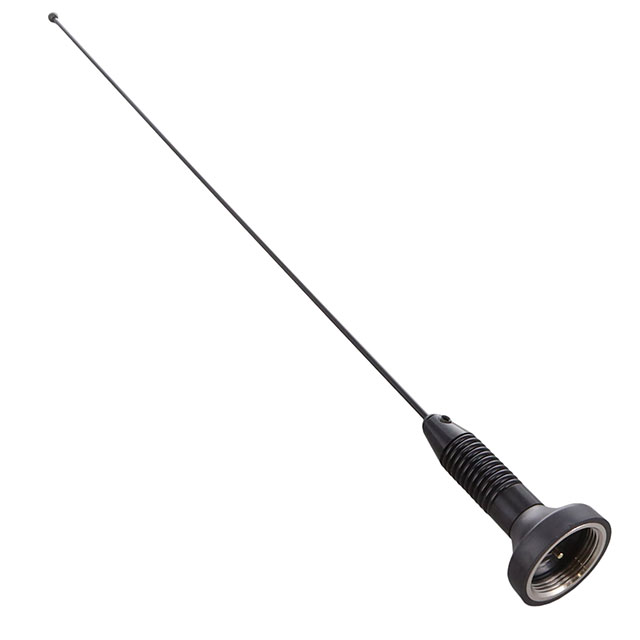

AB150S is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 150MHZ WHIP STR NMO BASE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AB150S
- Description：RF ANT 150MHZ WHIP STR NMO BASE
- Series：-
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：150MHz
- Frequency Range：150MHz ~ 174MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：0dB
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Base Mount
- Height (Max)：-
- Applications：-
- Power - Max：200 W
Antennas RF datasheet and documents for AB150S
Antennas RF Overview
The AB150S is a VHF whip antenna manufactured by TE Connectivity, designed for operation within the 150MHz to 174MHz frequency range. It features a straight whip element with a gain of 0dB and supports a maximum power input of 200W. The antenna utilizes an NMO base mount for installation and maintains a voltage standing wave ratio (VSWR) of 1.5. This component is classified under RF antennas for the VHF band.
Antennas RF Feature Summary
- Straight whip design optimized for VHF band transmission
- NMO base mounting configuration for secure attachment
- Capable of handling up to 200W maximum power input
Antennas RF Applications
- VHF radio communication systems
- Marine vessel communications
- Land mobile radio installations
Antennas RF Procurement Notes
Verify the specific part number AB150S against official TE Connectivity documentation to confirm current availability and technical specifications. Ensure compatibility with existing NMO mounts and check for any recent manufacturing changes or product change notices that may affect performance characteristics before finalizing procurement decisions.
Antennas RF Selection Notes
Select this model when a 0dB gain VHF antenna is required for frequencies between 150MHz and 174MHz. Confirm that the application environment supports the 200W power rating and that the NMO base interface matches the vehicle or equipment mounting structure. Validate VSWR requirements against system specifications.
Antennas RF Part Context
This antenna belongs to the A-Base Antennas family from TE Connectivity, which provides solutions for various RF communication needs. The AB150S serves as a specialized component within the broader portfolio of RF antennas and accessories offered by the manufacturer, focusing on reliable VHF band performance.
Antennas RF Replacement Considerations
The BB1442NR is listed as a compatible alternative in related product data, offering similar NMO base mounting but with a different gain specification of 2dBi and a slightly varied frequency range. Verify electrical compatibility before substitution.
