AB1880B637

Overview

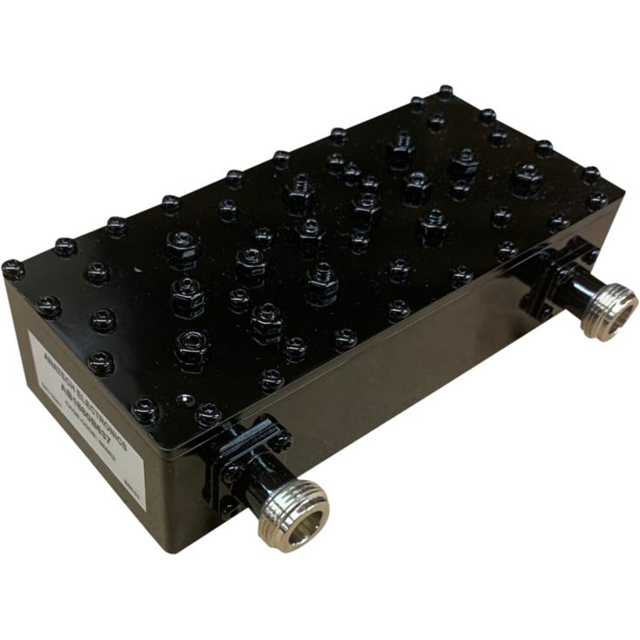

The AB1880B637 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates within the 1850-1910 MHz frequency band, centered at 1.88 GHz. The component features a 60 MHz bandwidth and maintains a maximum passband insertion loss of 1.0 dB. It ensures signal integrity through a minimum passband return loss specification. This module is designed for radio frequency applications requiring precise frequency selection.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering with defined center frequency
• Low insertion loss characteristics in passband

Applications

• Radio frequency signal processing
• Telecommunications infrastructure
• RF system frequency selection

Procurement Notes

Verify part number accuracy against official Anatech Electronics documentation. Confirm RoHS compliance status and lead-free manufacturing details prior to order placement. Ensure application requirements align with the specified 1850-1910 MHz operational range and electrical parameters. Cross-reference datasheet specifications for insertion loss and return loss tolerances to guarantee system compatibility.

Selection Notes

Select this component when a 1.88 GHz center frequency with 60 MHz bandwidth is required. Consider the 1.0 dB maximum insertion loss limit for signal efficiency needs. Evaluate cavity filter benefits for stability in RF environments. Ensure the 1850-1910 MHz band matches the target application spectrum requirements before integration.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. The AB1880B637 belongs to their bandpass filter portfolio. It utilizes cavity technology for high-performance filtering. The company focuses on custom and standard RF solutions.

Replacement Considerations

Consult official Anatech Electronics documentation for verified substitute part numbers. Do not assume cross-model compatibility without manufacturer confirmation.
