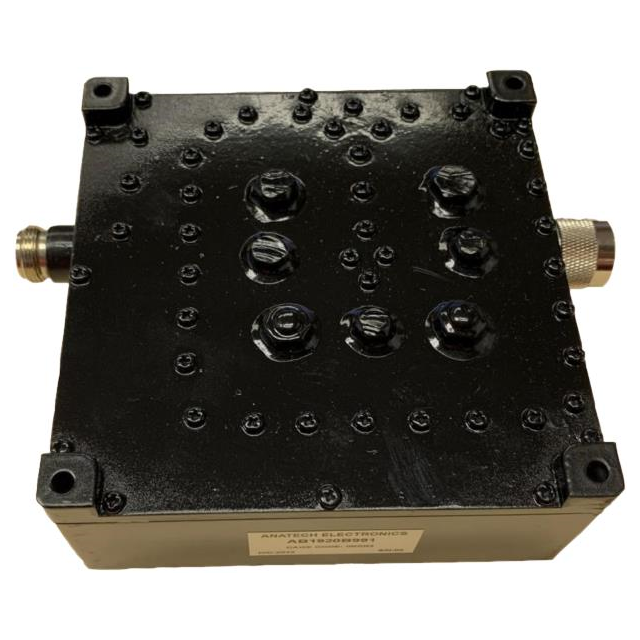

AB1920B991

$777.75

Description：RF FILTER BAND PASS 1.92GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:125368699d9c Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 1.92GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：1.92GHz Center
Bandwidth：140MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：0.25dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：4.600" L x 4.600" W (116.84mm x 116.84mm)
Height (Max)：1.862" (47.30mm)

Download product information

AB1920B991

Overview

The AB1920B991 is a band-pass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 1920 MHz, designed for the LTE Frequency Band 1 CA application. The component features a bandwidth of 140 MHz and an insertion loss of 0.25 dB. It is supplied as a module equipped with SMA connectors.

Feature Summary

Band-pass filtering capability centered at 1920 MHz
Optimized for LTE Frequency Band 1 CA applications
Integrated SMA connector interface

Applications

LTE Frequency Band 1 CA systems
RF signal processing modules
Wireless communication equipment

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status, as documentation indicates it may not apply. Ensure SMA connector compatibility with system requirements. Confirm exact electrical tolerances against the official manufacturer data sheet before integration.

Selection Notes

Select this component for applications requiring precise 1920 MHz band-pass filtering with low insertion loss. The integrated SMA connectors simplify assembly. Verify that the 140 MHz bandwidth meets the specific spectral requirements of the target LTE Band 1 CA implementation.

Part Context

Anatech Electronics Inc. produces specialized RF components. This model is part of their lineup of band-pass filters designed for cellular communication standards. The company provides technical documentation to support integration into wireless infrastructure and mobile device architectures.

Replacement Considerations

Consult the official datasheet for verified substitute part numbers. Cross-reference specifications such as center frequency, bandwidth, and connector type to ensure functional equivalence in existing designs.
