AB2232B980

$611.83

Description：RF FILTER BAND PASS 2.232GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:3c2b1812608f Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 2.232GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2.232GHz Center
Bandwidth：22MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：2dB
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：4.843" L x 2.795" W (123.00mm x 71.00mm)
Height (Max)：1.240" (31.50mm)

Download product information

AB2232B980

Overview

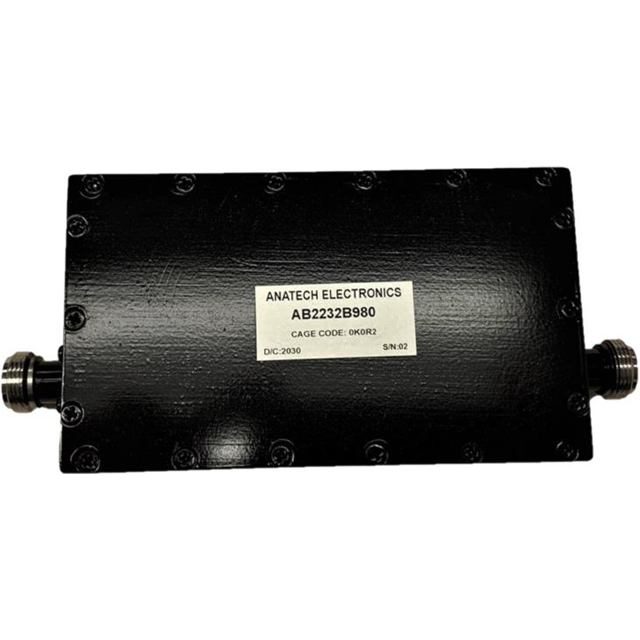

The AB2232B980 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. Designed for WiFi applications, it operates with a center frequency of 2232 MHz and provides a bandwidth of 22 MHz. The component exhibits an insertion loss of 2 dB. It is constructed as a module suitable for radio frequency signal processing in wireless communication systems.

Feature Summary

Cavity construction for high performance
Bandpass filtering capability
WiFi application optimization

Applications

WiFi signal processing
Radio frequency modules
Wireless communication systems

Procurement Notes

Verify the specific datasheet AB2232B980.pdf from Anatech Electronics Inc. to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with existing RF infrastructure before integration. Check for any updated revision codes that may affect pinout or mounting requirements.

Selection Notes

Select this component when a 2232 MHz center frequency is required for WiFi bands. The 22 MHz bandwidth suits specific channel allocations. Consider the 2 dB insertion loss impact on system gain. Verify cavity package suitability for the intended enclosure space.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for commercial, aerospace, and defense sectors. This model belongs to their cavity filter lineup, designed for robust signal integrity in demanding environments. The company maintains ISO 9001:2015 certification for manufacturing quality.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 2232 MHz center frequency, 22 MHz bandwidth, and 2 dB insertion loss specifications exactly.
