AB2242B981

Overview

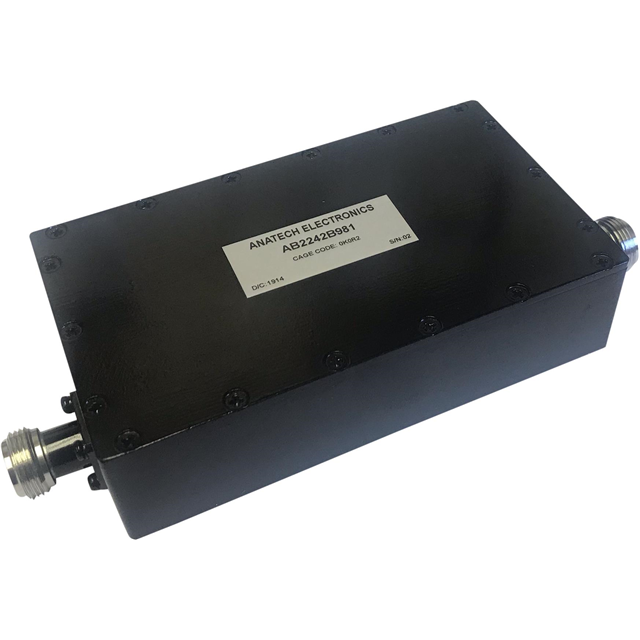

The AB2242B981 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 2242 MHz and a bandwidth of 22 MHz. The module exhibits an insertion loss of 2 dB. Designed for robust performance, it serves as a specialized component for filtering radio frequency signals within specific communication bands.

Feature Summary

• Cavity construction for high selectivity
• Bandpass filtering capability
• Module form factor

Applications

• WiFi systems
• Radio frequency signal processing
• Communication equipment

Procurement Notes

Verify the exact center frequency and bandwidth specifications against your system requirements before procurement. Confirm that the module package type matches your integration needs. Ensure compatibility with existing RF infrastructure to maintain signal integrity and performance standards in your application design.

Selection Notes

Select this component when a precise 2242 MHz center frequency is required. Consider the 22 MHz bandwidth and 2 dB insertion loss characteristics for signal chain optimization. Evaluate the cavity construction benefits for applications demanding high rejection of out-of-band signals compared to other filter technologies.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter portfolio, specifically designed for cavity-based solutions. It is categorized under bandpass filters intended for wireless communication applications. The manufacturer specializes in custom and standard RF components for various industrial and commercial sectors.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Verify electrical parameters such as center frequency, bandwidth, and insertion loss when evaluating potential alternatives from other manufacturers to ensure functional equivalence.
