Product Detailed Parameters
- Description：RF FILTER BAND PASS 2.25GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.25GHz Center
- Bandwidth：100MHz
- Filter Type：Band Pass
- Ripple：0.4dB
- Insertion Loss：0.8dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：4.567" L x 2.520" W (116.00mm x 64.00mm)
- Height (Max)：1.575" (40.00mm)
Download product information
Overview

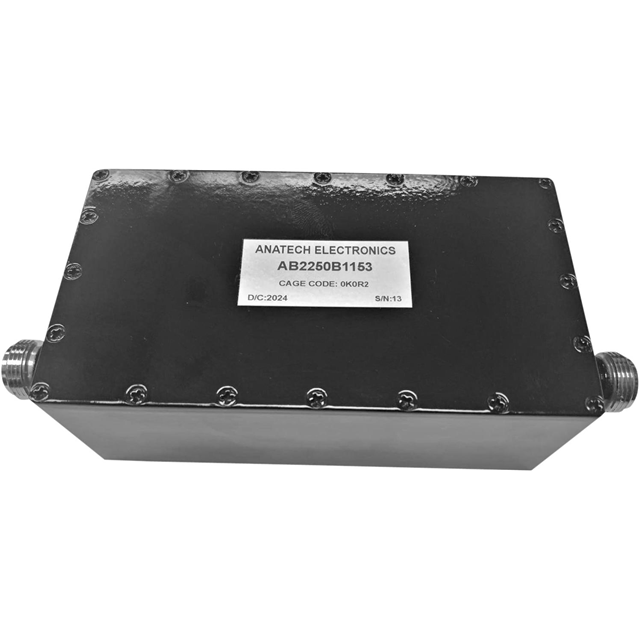

The AB2250B1153 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates within a frequency range of 2200 to 2300 MHz, providing a center frequency of 2.25 GHz with a bandwidth of 100 MHz. The component features an insertion loss of 0.8 dB and is designed as a module for radio frequency applications.
Feature Summary
- Cavity construction for high performance
- Bandpass filtering capability
- Module form factor
Applications
- Radio frequency signal processing
- Outdoor communication systems
Procurement Notes
Verify the specific datasheet version and exact electrical tolerances before integration. Confirm connector types and mounting requirements against system specifications. Ensure environmental ratings match deployment conditions. Cross-reference part numbers with official manufacturer documentation to avoid counterfeit components.
Selection Notes
Select this component when a 2200-2300 MHz bandpass response is required. Consider the 0.8 dB insertion loss impact on system gain. Evaluate cavity size constraints for installation. Verify compatibility with existing RF interface standards.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity bandpass filter series. The company focuses on design and manufacturing of related products. ISO 9001:2015 certification indicates quality management standards.
Replacement Considerations
Check AE2441WN2219 for notch filter alternatives. Review AE18000SSL1062 for low-pass options. Compare AE5500SSH6558 for high-pass needs. Consult engineering database for spec matches.
