AB2250B1212

Overview

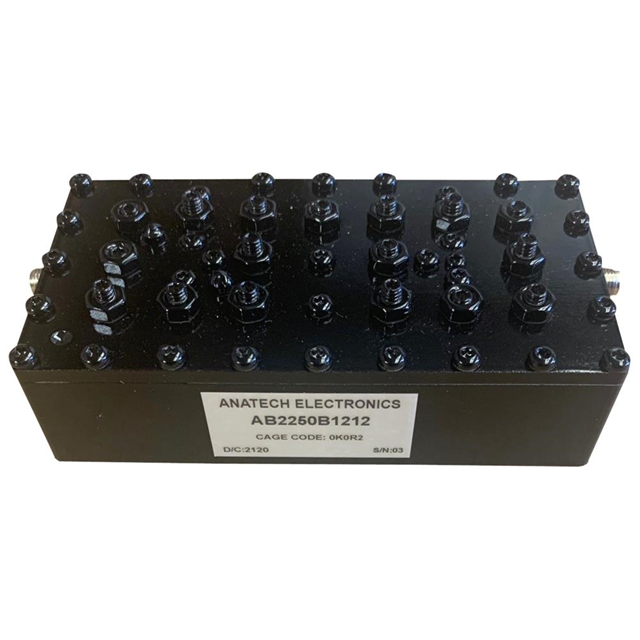

The AB2250B1212 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates within the 2200-2300 MHz frequency range with a center frequency of 2.25 GHz and a bandwidth of 100 MHz. The component features SMA connectors and exhibits an insertion loss of 0.8 dB. Designed as a module, it provides signal filtering capabilities for radio frequency applications requiring precise frequency selection.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering in the 2200-2300 MHz range
• SMA connector interface for modular integration

Applications

• Radio frequency signal processing
• Aerospace communication systems
• Defense electronic warfare equipment

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector specifications. Ensure environmental compliance requirements match project needs, noting RoHS compliance status. Confirm that the SMA connector type aligns with existing system interfaces before procurement.

Selection Notes

Select this component when a narrowband cavity filter is required for the 2.25 GHz spectrum. Consider the 100 MHz bandwidth and 0.8 dB insertion loss against system link budget requirements. Evaluate the module form factor for compatibility with available mounting space and interconnect infrastructure.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for commercial, aerospace, and defense sectors. This company produces components designed for high-reliability environments, focusing on precision filtering solutions that meet stringent industry standards for signal integrity and durability.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-reference with other Anatech cavity filters only if frequency and bandwidth parameters match exactly.
