AB2300B1273

Overview

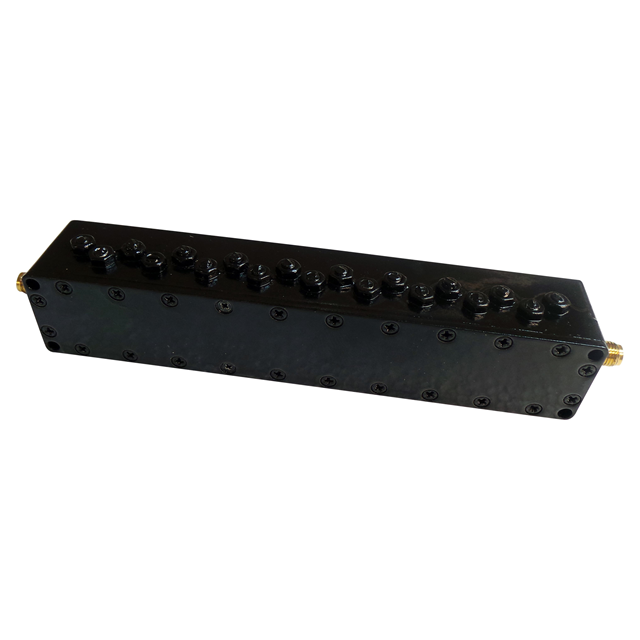

The AB2300B1273 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 2300 MHz (2.3 GHz) and provides a 3 dB bandwidth of 200 MHz. The component features a maximum insertion loss of 1.0 dB at the center frequency. It utilizes SMA connectors for interface connections. This active part is RoHS compliant and constructed as a module suitable for RF signal filtering.

Feature Summary

• Cavity construction for high-performance RF filtering
• Bandpass filter topology centered at 2.3 GHz
• SMA connector interface for standard integration

Applications

• Radio frequency signal processing systems
• Communication equipment requiring 2.3 GHz filtering
• RF module integration in electronic devices

Procurement Notes

Verify the specific datasheet AB2300B1273.pdf for complete electrical specifications and mechanical drawings before procurement. Confirm that the SMA connector type matches your system requirements. Ensure the operating environment aligns with the component's thermal and physical constraints. Check for any specific handling instructions related to the cavity structure.

Selection Notes

Select this component when a 200 MHz bandwidth at 2.3 GHz is required with low insertion loss. The cavity design offers distinct performance characteristics compared to planar filters. Verify compatibility with existing SMA interfaces in the target assembly. Consider the physical dimensions and mounting requirements associated with the cavity module form factor.

Part Context

Anatech Electronics Inc. produces specialized RF components, including cavity filters like the AB2300B1273. These parts are typically used in niche RF applications where specific frequency selectivity is critical. The company maintains an active status for this model, indicating ongoing production or support.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult manufacturer documentation for potential alternatives if sourcing issues arise.
