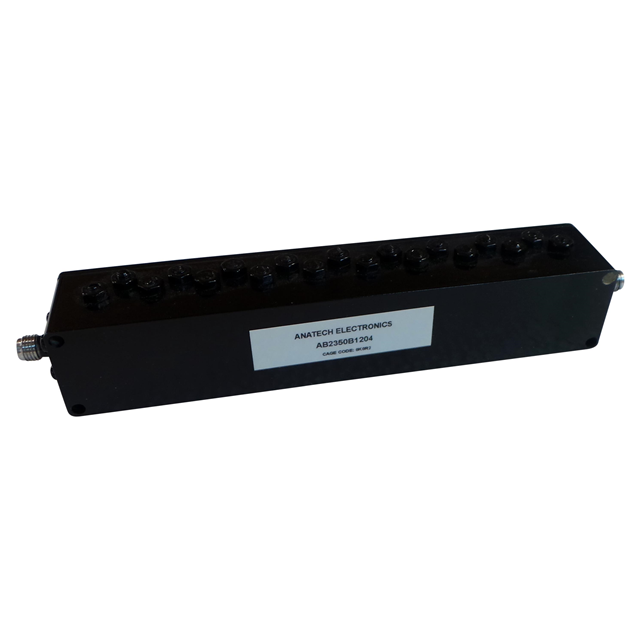

AB2350B1160

$531.25

Description：RF FILTER BAND PASS 2.35GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:c93bbbca9a16 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 2.35GHZ MOD
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：2.35GHz Center
Bandwidth：300MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：5.217" L x 0.984" W (132.50mm x 25.00mm)
Height (Max)：0.945" (24.00mm)

Download product information

AB2350B1160

Overview

The AB2350B1160 is a cavity band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.35GHz and provides a bandwidth of 300MHz. The component features SMA connectors for interface connections.

Feature Summary

Cavity construction for RF filtering
Band pass frequency response
SMA connector interfaces

Applications

Radio frequency signal processing
Microwave communication systems
RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm that the SMA connector type matches system requirements. Ensure environmental conditions align with the component's operational specifications as defined in official documentation.

Selection Notes

Select this component when a fixed center frequency of 2.35GHz and a 300MHz bandwidth are required. The cavity design suits applications needing stable performance at microwave frequencies. Verify compatibility with existing SMA-based circuitry during the design phase.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This part belongs to their cavity filter series, designed for high-performance signal conditioning in radio frequency applications. The company focuses on custom and standard filter solutions for industrial and commercial use.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 2.35GHz center frequency, 300MHz bandwidth, and SMA interface constraints.
