AB2350B1204

Overview

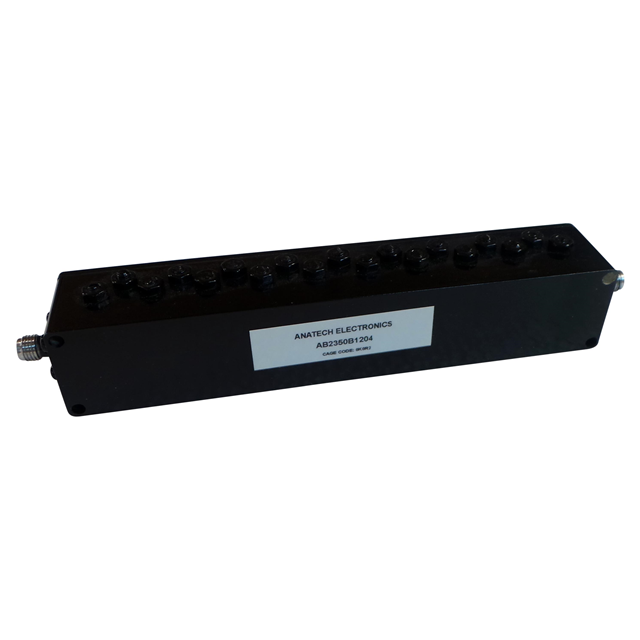

The AB2350B1204 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2350 MHz and provides a bandwidth of 320 MHz, covering a passband from 2190 MHz to 2510 MHz. The component features an insertion loss of 1.0 dB within the passband. It utilizes SMA connectors for interface connections and is designed as a single-section module.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 2350 MHz
• SMA connector interfaces for signal transmission

Applications

• Radio frequency signal processing systems
• Communication equipment requiring specific frequency band selection
• RF test and measurement instrumentation

Procurement Notes

Verify the exact part number AB2350B1204 against manufacturer documentation to ensure correct specifications. Confirm connector type compatibility and mounting requirements before integration. Check RoHS status if environmental compliance is required for your specific application environment.

Selection Notes

Select this component when a fixed center frequency of 2350 MHz with a 320 MHz bandwidth is required. Ensure the system can accommodate the 1.0 dB insertion loss. Verify that SMA connectors match the existing circuit board or cable assembly interfaces.

Part Context

This component belongs to the Anatech Electronics cavity filter series, which are known for high selectivity and stability in RF applications. These filters are typically used in scenarios where precise frequency control and rejection of out-of-band signals are critical for system integrity.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Anatech Electronics directly for potential cross-references or updated model equivalents.
