AB2350B490-NF

Overview

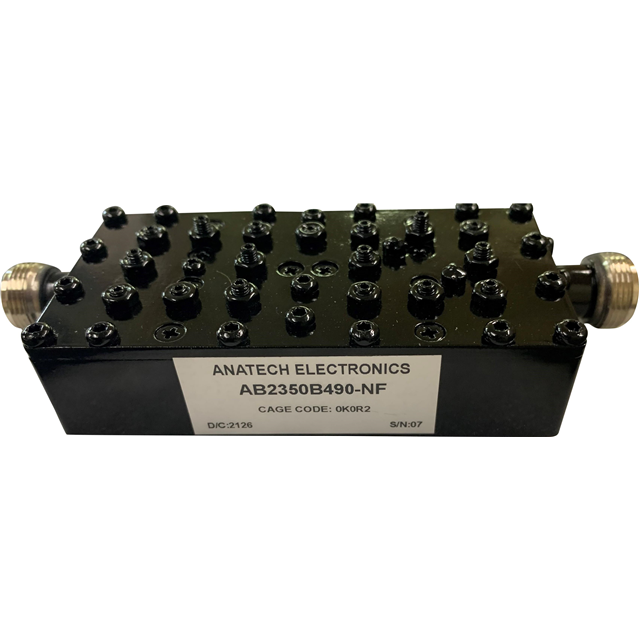

The AB2350B490-NF is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.35 GHz and provides a bandwidth of 100 MHz, covering the 2300 to 2400 MHz range. The component exhibits an insertion loss of 1.7 dB. Designed for Wi-Fi applications, it utilizes N-F connectors and is housed in a module configuration.

Feature Summary

• Cavity construction for stable RF performance
• N-F connector interface
• Optimized for Wi-Fi frequency bands

Applications

• Wi-Fi systems
• Radio frequency signal processing
• Communication equipment filtering

Procurement Notes

Verify the specific datasheet revision DS-B490-NF-05062020-Rev1 when sourcing. Confirm that the N-F connector type matches system requirements. Ensure the 1.7 dB insertion loss specification aligns with link budget calculations. Check for any mechanical dimension constraints within the installation space.

Selection Notes

Select this component when a cavity-based solution is required for the 2300-2400 MHz range. The 100 MHz bandwidth suits standard Wi-Fi channel allocations. Consider the physical size of the module relative to available chassis space. Evaluate if the N-F connector style is compatible with existing cable assemblies.

Part Context

This part belongs to Anatech Electronics' series of cavity bandpass filters designed for high-performance RF applications. The model number indicates specific frequency and bandwidth characteristics within their product line. Similar parts may exist with different connector types or frequency ranges.

Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Verify compatibility with alternative cavity filters from Anatech or other manufacturers based on identical electrical specifications and mechanical footprint.
