AB2350B890

Overview

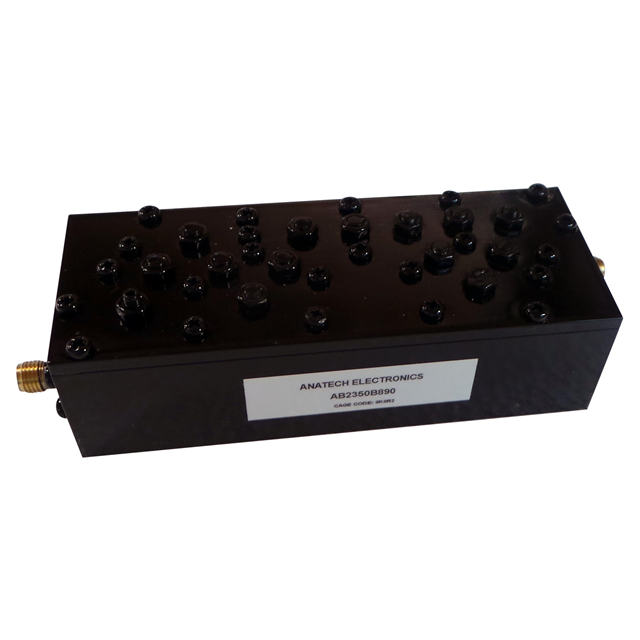

The AB2350B890 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 2350 MHz and provides a bandwidth of 100 MHz. The component features an insertion loss of 1.5 dB and a ripple specification of 0.5 dB. It utilizes SMA connectors for interface connections and is housed in a module package suitable for chassis mounting.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface for signal transmission
• Chassis mount configuration for structural integration

Applications

• Radio frequency signal filtering
• Communication system channel selection
• RF test and measurement equipment

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required connector types and mounting configurations. Confirm RoHS compliance status if environmental regulations apply to the assembly process. Cross-reference the datasheet specifications against system requirements to validate electrical parameters such as center frequency and bandwidth before procurement.

Selection Notes

Select this component when a fixed center frequency of 2350 MHz is required with a 100 MHz passband. Consider the chassis mount form factor for permanent installation in RF systems. Ensure that the SMA connector type matches the existing cable or board interfaces within the design architecture.

Part Context

This part belongs to the cavity filter category from Anatech Electronics Inc. These components are engineered for high-performance RF filtering tasks where size and weight constraints allow for cavity-based solutions. The series typically offers robust shielding and precise tuning capabilities for specialized communication bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
