AB2420B723

Overview

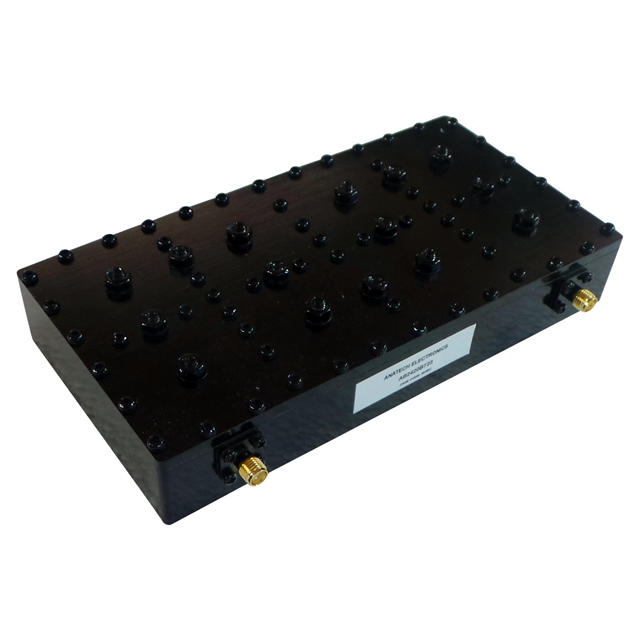

The AB2420B723 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.42 GHz and provides a bandwidth of 32 MHz. The component is designed for radio frequency applications requiring precise signal selection within the specified frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering characteristic at 2.42 GHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Communication systems requiring 2.42 GHz filtering

Procurement Notes

Verify the specific datasheet version from Anatech Electronics Inc. to confirm mechanical dimensions and connector types. Ensure compatibility with existing RF system requirements before procurement. Check for any specific handling instructions related to cavity filters.

Selection Notes

Select this component when a fixed 2.42 GHz center frequency with 32 MHz bandwidth is required. Consider the cavity construction for environmental stability. Verify interface compatibility with the target RF circuit design.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter family, specifically cavity bandpass models. These components are engineered for high-performance RF applications where precise frequency control and rejection of out-of-band signals are critical.

Replacement Considerations

Consult official substitution lists from Anatech Electronics Inc. for verified equivalents. Ensure replacement parts match the 2.42 GHz center frequency and 32 MHz bandwidth specifications exactly.
