Product Detailed Parameters
- Description：RF FILTER BAND PASS 2.422GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.422GHz Center
- Bandwidth：22MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：7.870" L x 4.050" W (199.90mm x 102.87mm)
- Height (Max)：1.530" (38.86mm)
Download product information
Overview

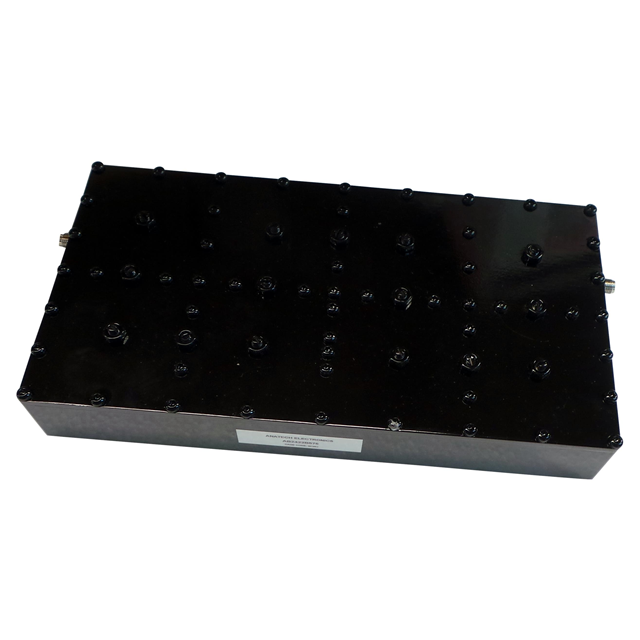

The AB2422B575 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.422 GHz and features a bandwidth of 22 MHz. The component exhibits an insertion loss of 2 dB and utilizes SMA connectors for interface connectivity. Designed as a module, it serves as a specialized radio frequency filtering solution within electronic systems requiring precise signal selection at the specified microwave frequency.
Feature Summary
- Cavity construction for stable RF performance
- SMA connector interface for modular integration
- Bandpass filtering capability at 2.422 GHz
Applications
- Radio frequency signal processing
- Wireless communication systems
- Microwave circuit modules
Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and connector orientation prior to procurement. Ensure that the SMA connector type matches the system requirements. Confirm the operating temperature range aligns with the intended application environment. Validate that the 2.422 GHz center frequency meets the design specifications exactly.
Selection Notes
Select this component when a fixed center frequency of 2.422 GHz is required. The 22 MHz bandwidth defines the passband characteristics. Consider the SMA interface compatibility with existing PCB or cable assemblies. Evaluate the 2 dB insertion loss against system link budget requirements. Verify chassis or panel mounting constraints if applicable.
Part Context
Anatech Electronics Inc. produces specialized RF filters for industrial and commercial applications. This model belongs to their cavity filter series, designed for high selectivity and stability. The product line typically addresses niche frequency requirements in telecommunications and radar systems. The manufacturer focuses on custom and standard RF components.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 2.422 GHz center frequency, 22 MHz bandwidth, and SMA interface. Mechanical form factor and insertion loss specifications must be verified before considering alternative sources.
