AB2440B520

Overview

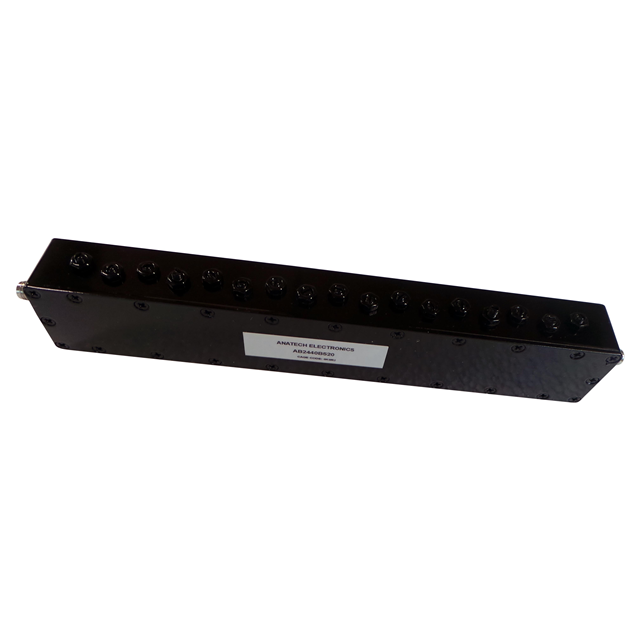

The AB2440B520 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 2.44GHz and provides an 80MHz bandwidth. The component features a maximum insertion loss of 2dB and a ripple of 0.2dB. It is housed in a module package equipped with SMA connectors, suitable for base mounting. The unit measures approximately 6.732 inches in size and is currently active in production.

Feature Summary

• Cavity construction for stable RF filtering performance
• SMA connector interface for standard integration
• Base mount installation type

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector specifications before integration. Ensure compatibility with SMA interfaces and base mounting requirements. Check RoHS3 compliance status if environmental regulations apply to your deployment. Confirm the active product status with the manufacturer or authorized distributor to guarantee supply availability.

Selection Notes

Select this component when a 2.44GHz center frequency with 80MHz bandwidth is required. Consider the 2dB insertion loss and 0.2dB ripple specifications against system sensitivity needs. The module form factor with SMA connectors dictates physical integration constraints. Verify that the cavity design meets thermal and isolation requirements for the intended RF environment.

Part Context

This part belongs to the Anatech Electronics Inc. RF Filters category, specifically cavity bandpass filters. These components are engineered for precise frequency selection in radio frequency circuits. The AB2440B520 represents a standardized solution for filtering signals around the 2.44GHz range, commonly used in wireless communication infrastructure and test equipment applications.

Replacement Considerations

Consult official substitution lists from Anatech Electronics Inc. for verified equivalents. Generic replacements may not match the cavity construction or SMA connector specifications. Verify that any substitute maintains the 2.44GHz center frequency and 80MHz bandwidth parameters without altering the module footprint.
