Product Detailed Parameters
- Description：RF FILTER BAND PASS 2.441GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：2.441GHz Center
- Bandwidth：66MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：4.000" L x 2.500" W (101.60mm x 63.50mm)
- Height (Max)：1.100" (27.94mm)
Download product information
Overview

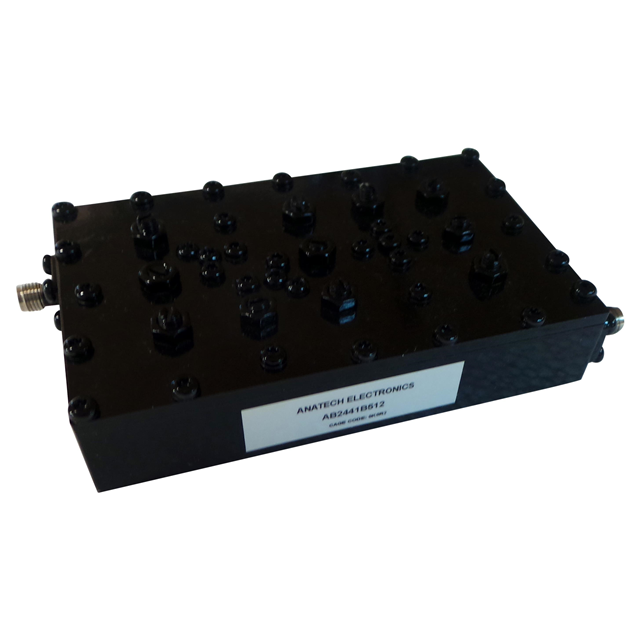

The AB2441B512 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2441 MHz and provides a bandwidth of 66 MHz. The component features SMA connectors for interface connectivity. Within the passband range of 2400.0 to 2483.5 MHz, it exhibits an insertion loss of 2.5 dB and an amplitude ripple of 5.0 dB.
Feature Summary
- Cavity construction for stable RF filtering performance
- SMA connector interfaces for standard integration
- Defined center frequency and bandwidth specifications
Applications
- Radio frequency signal processing systems
- Military communication equipment
- Commercial RF infrastructure
Procurement Notes
Verify part authenticity through authorized Anatech Electronics Inc. distributors or direct channels. Confirm datasheet version matches the specific manufacturing batch. Ensure SMA connector compatibility with existing system interfaces before procurement. Request official documentation to validate electrical parameters against application requirements.
Selection Notes
Select this component when a fixed center frequency near 2441 MHz is required. The 66 MHz bandwidth suits applications needing precise frequency selection within the defined passband. Consider the 2.5 dB insertion loss impact on system gain budgets. Verify physical dimensions and mounting requirements align with the target enclosure design constraints.
Part Context
Anatech Electronics Inc. specializes in standard and custom radio frequency filters for military and commercial sectors. This cavity filter belongs to their portfolio of precision RF components designed for high-performance signal conditioning. The product line emphasizes reliability and strict electrical tolerances for demanding environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching center frequency, bandwidth, and connector type. Consult manufacturer engineering support for equivalent alternatives if this specific model is unavailable.
FAQ
What is the operating center frequency?
The center frequency is 2441 MHz.
What is the insertion loss specification?
The insertion loss is 2.5 dB within the specified passband.
