AB2490B721

Overview

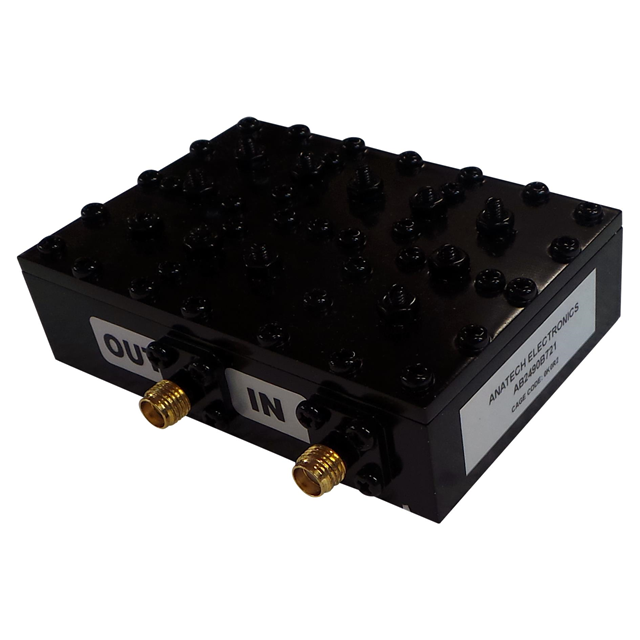

The AB2490B721 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.49 GHz and provides an 11 MHz bandwidth at the 3dB level. The component is designed as a module featuring SMA connectors for interface connectivity. This configuration supports signal bandwidth requirements for broad communication range applications within the specified frequency parameters.

Feature Summary

• Utilizes cavity construction for bandpass filtering characteristics
• Equipped with SMA connectors for module integration
• Designed to support specific signal bandwidths for communication applications

Applications

• RF communication systems requiring 2.49 GHz filtering
• Broadband communication range implementations
• Radio frequency module integration

Procurement Notes

Verify the exact part number AB2490B721 against manufacturer documentation to ensure compatibility with your system's frequency and connector requirements. Confirm RoHS compliance status if required for your manufacturing process. Cross-reference specifications such as center frequency and bandwidth with your design constraints before procurement to avoid integration issues.

Selection Notes

Select this component when a 2.49 GHz center frequency with 11 MHz bandwidth is required. Ensure the SMA connector type matches your existing infrastructure. Consider the cavity construction benefits for performance needs in RF environments where specific bandpass characteristics are critical for signal integrity.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including cavity bandpass designs. The AB2490B721 belongs to their line of modular RF components intended for precise frequency selection. The company focuses on designing and manufacturing these components for various communication and electronic applications.

Replacement Considerations

Publicly confirmed substitute part numbers for the AB2490B721 were not identified in available documentation. Verify compatibility with alternative models through direct manufacturer consultation or detailed technical specification comparison.
