AB2492B1218

Overview

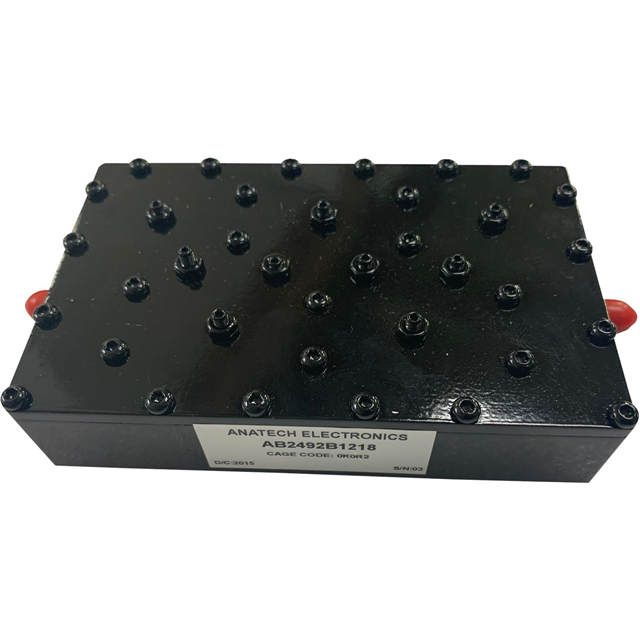

The AB2492B1218 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.49202 GHz and provides a bandwidth of 16.5 MHz, covering the range from 2483.778 MHz to 2500.278 MHz. The component features SMA connectors for interface and exhibits an insertion loss of 0.8 dB. Designed as a module, it serves as a specialized radio frequency noise filter for precise signal selection within defined frequency bands.

Feature Summary

• Provides selective bandpass filtering for radio frequency signals
• Utilizes cavity construction for stable performance
• Equipped with SMA connectors for direct integration

Applications

• Radio frequency interference mitigation
• Signal conditioning in communication systems
• EMI/RFI noise filtering modules

Procurement Notes

Verify the specific connector type and mechanical dimensions against your system requirements before ordering. Confirm that the center frequency and bandwidth align with your operational spectrum needs. Ensure compatibility with existing SMA interfaces. Check for any specific environmental ratings if the deployment involves extreme conditions. Validate the manufacturer's warranty terms upon receipt.

Selection Notes

Select this component when a fixed center frequency near 2.49 GHz is required with minimal insertion loss. The SMA interface simplifies connection to standard test equipment or RF circuits. Consider the physical size constraints of the cavity module during layout planning. This filter is suitable for applications demanding high selectivity within a narrow 16.5 MHz window.

Part Context

Anatech Electronics Inc. specializes in RF filters and components. The AB2492B1218 belongs to their line of cavity bandpass filters designed for specific frequency applications. These components are typically used in scenarios requiring robust signal isolation and noise reduction in the microwave frequency range.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
