AB2500B529

Overview

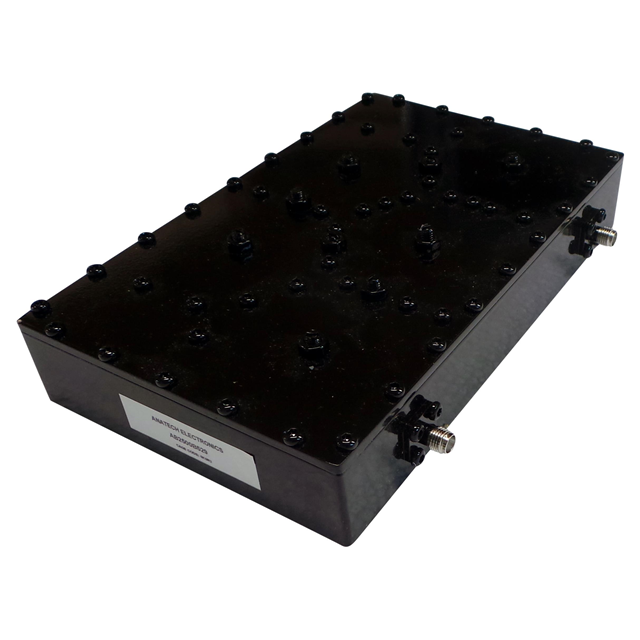

The AB2500B529 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 2500 MHz and a bandwidth of 5 MHz. The component features an insertion loss of 2.5 dB and a return loss of 20 dB. It utilizes SMA connectors for interface connections.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 2500 MHz
• SMA connectorized module design

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF filter modules

Procurement Notes

Verify the specific datasheet version and connector orientation before procurement. Confirm that the SMA connector gender matches system requirements. Ensure environmental ratings align with deployment conditions. Cross-reference part numbers to avoid confusion with similar Anatech models.

Selection Notes

Select this component when a 2500 MHz center frequency and 5 MHz bandwidth are required. Consider the 2.5 dB insertion loss impact on system gain. Verify compatibility with existing SMA interfaces. Evaluate cavity size constraints against available mounting space in the assembly.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity bandpass filter series. The company designs components for various communication applications. The AB2500B529 represents a standard fixed-frequency solution within their portfolio.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
