AB2515B977

Overview

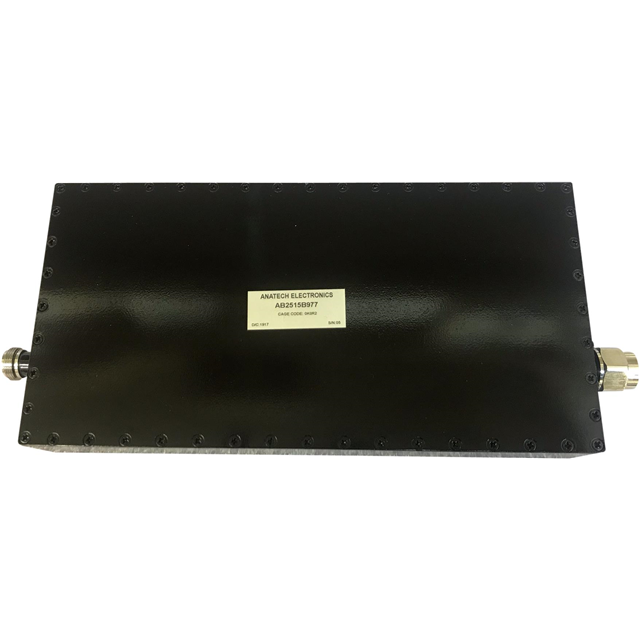

The AB2515B977 is a band pass RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 2.515 GHz and provides a bandwidth of 30 MHz. The device features an insertion loss of 0.9 dB. Designed as a cavity band pass filter, it covers the frequency range of 2500-2530 MHz. This component is packaged as a module for integration into radio frequency systems requiring precise signal filtering within this specific spectrum.

Feature Summary

• Band pass filtering capability centered at 2.515 GHz
• Cavity construction for stable RF performance
• Module packaging format for system integration

Applications

• Radio frequency signal processing
• Communication systems operating in the 2.5 GHz range
• RF front-end filtering applications

Procurement Notes

Verify the manufacturer part number AB2515B977 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with system requirements for 2.515 GHz center frequency and 30 MHz bandwidth. Check datasheet details for mechanical dimensions and mounting requirements before procurement.

Selection Notes

Select this component when a fixed center frequency of 2.515 GHz is required. The 30 MHz bandwidth suits applications needing narrowband filtering. Consider the module form factor for ease of installation. Verify that the 0.9 dB insertion loss meets system power budget constraints.

Part Context

This part belongs to the Anatech Electronics Inc. RF Filters product line. It is categorized as a band pass filter module. The series includes various filters with different center frequencies and bandwidths tailored for specific RF applications.

Replacement Considerations

Consult official Anatech Electronics substitution guides for verified equivalents. Ensure any replacement matches the 2.515 GHz center frequency and 30 MHz bandwidth specifications exactly.
