AB2535B861

Overview

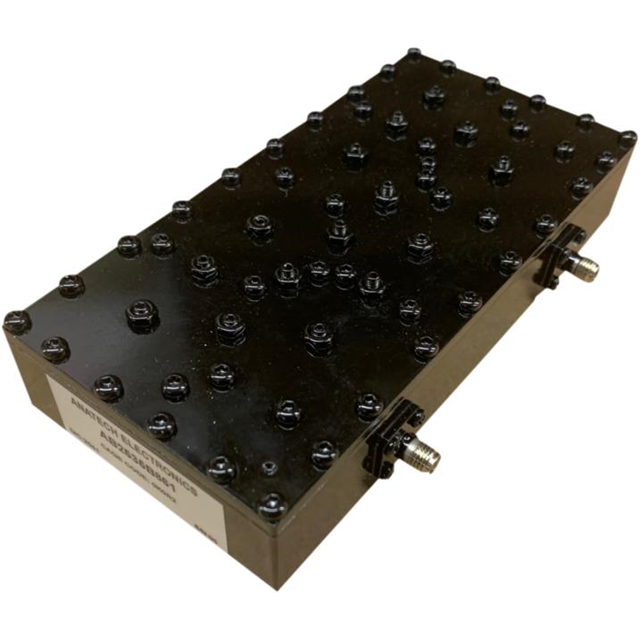

The AB2535B861 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates within a passband of 2500 to 2570 MHz, providing a bandwidth of 70 MHz centered at 2535 MHz. The component features an input and output impedance of 50 Ohms and utilizes SMA connectors for interface. This RF filter is designed for precise frequency selection in radio frequency applications.

Feature Summary

• Cavity construction for high performance
• Bandpass filtering capability
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and connector type compatibility before procurement. Confirm that the 50 Ohm impedance matches your system requirements. Ensure the SMA connectors are suitable for your application environment. Check for any specific handling instructions regarding the cavity structure.

Selection Notes

Select this component when a narrow 70 MHz bandwidth around 2535 MHz is required. The 50 Ohm impedance is standard for most RF systems. Consider the physical size and mounting requirements of the cavity design. Verify that the operating temperature range meets your environmental needs.

Part Context

Anatech Electronics Inc. specializes in RF filters, including cavity bandpass models like the AB2535B861. These components are part of a broader portfolio designed for high-frequency applications. The company provides technical documentation to support integration into various RF circuits and systems.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
